Laser Protection Window Designed for 800 to 1100 Nanometer Wavelengths with High Optical Density and Large Dimension Safety Sheet
1064nm YAG Laser Protection Window OD4+ Infrared Safety Sheet VLT 68 %
1) Size: 1280*1000mm and deep processing according to requirement
2) Thickness: 5mm
3) Safety window of small cut size is available according the requirement from customers.
Technical details:
Dimension:1280*1000*5mm
Optical Density(OD): 4+
Protection Wavelength: 800~1100nm
| Visible light Transmittance | 68% |
| Package | 10pcs/carton |
| G.W | 80kg |
| Thickness | 5mm |
Notes:
1. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
2. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
Payment Ways & Shipping Ways:
1. Bank Transfer, Paypal and Western Union
2. Via Courier Express -Door to Door Service. Like DHL , UPS, TNT ,Fedex .etc

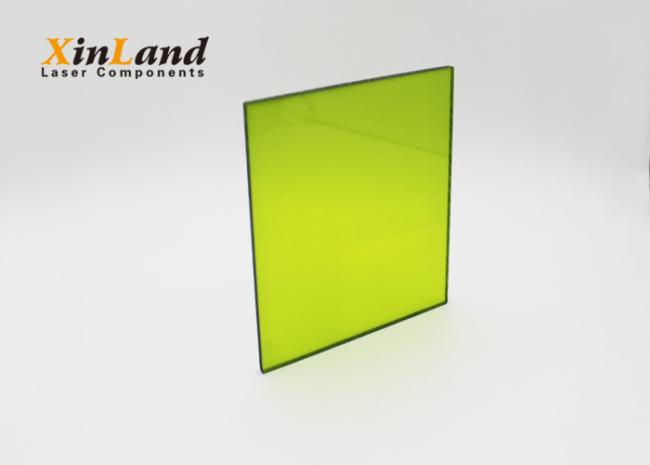

Product Photo:
Laser Safety Window Catalog :
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW6D5T | 190nm ~ 550nm | 1280*1000*5mm | 4+/6+/8+ |
| XL2PW6D5T | 580nm ~ 750nm | 1280*1000*5mm | 5+/6+/8+ |
| XL3PW6D5T | 800nm ~ 1100nm | 1280*1000*5mm | 4+/6+/8+ |
| XL3PW6GD5T | 190nm ~ 540nm & 800nm ~1100nm | 1280*1000*5mm | 4+/6+ |
| XL4PW6D5T | 190nm ~ 450nm & 800nm ~ 1700nm | 1280*1000*5mm | 4+/6+ |
| XL5PW6D5T | 190nm ~ 420nm & 860nm ~1300nm | 1280*1000*5mm | 4+/6+ |
| XL7PW6D5T | 10600nm | 1200*1000*5mm | 4+/6+ |

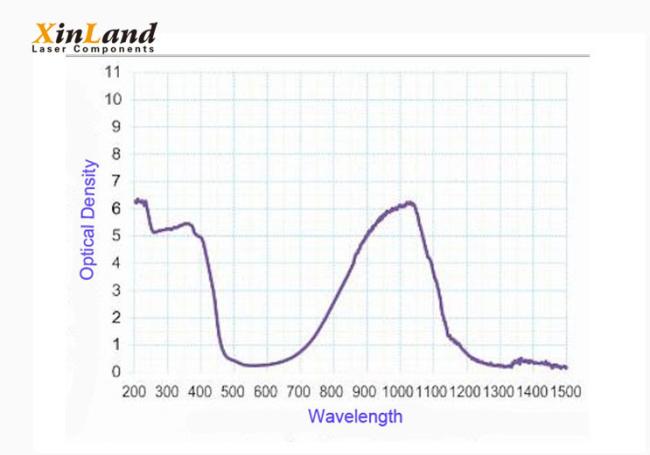

Specstrogram:
