800nm~1100nm Laser Shielding Sheet VLT 60% OD6+ PMMA Material
PMMA Material Industry YAG 1064nm VLT 60% OD6+ Laser Protection Window
Technical details:
Visible light Transmittance:60%
Optical Density(OD): 6+
Protection Wavelength: 800~1100nm
| Dimension | 1280*1000*5mm |
| Package | 10pcs/carton |
| G.W | 80kg |
| Thickness | 5mm |
Product Description:
Xinland Laser Safety Window can protect various diffuse light safely and the laser and the glare of the particular waveband can be protected in all directions. Light reaction is faster. Higher attenuation rate. The surface is not afraid of wear and tear, even if there is scratch, it does not affect the safety of light protection.

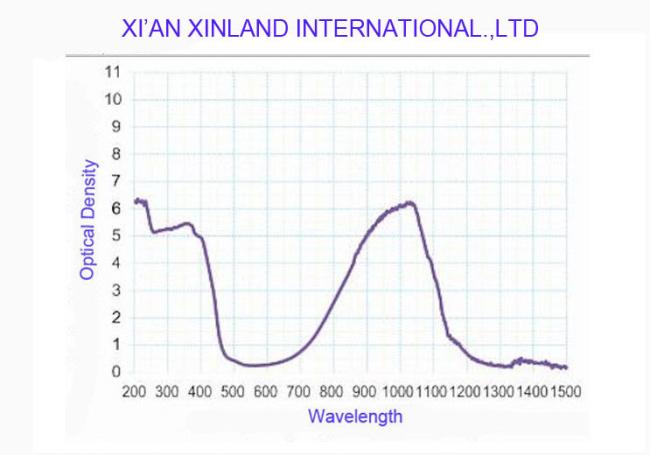

Spectrum Chart:
Notes:
1. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
2. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2.For all your inquires about us or our products, we will reply you in detail within 24 hours
3.We offer OEM services. Can print your own logo on product carton or stick label.
4.We have very experienced R&D engineers and we have strong ability to do ODM projects.
Laser Safety Window Catalog :
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |

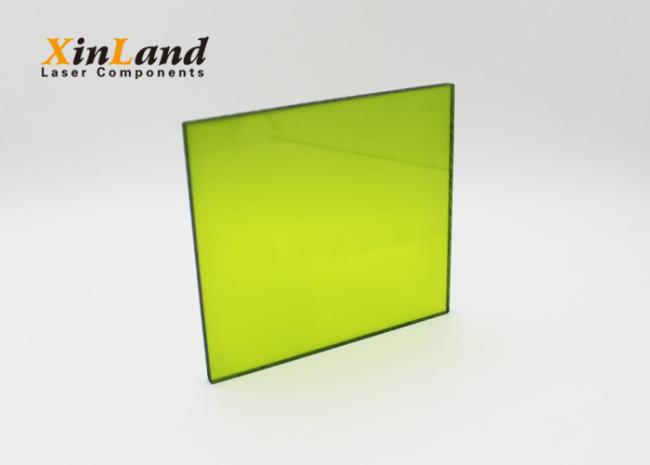

Product Photo:
