Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Kit Laser Module
Quick Details
Place of Origin:Shaanxi, China
Condition:New
Warranty:1 Year, 12 months
After-sales Service Provided:Online support
Spare Parts Type:laser module
Video outgoing-inspection:Not Available
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Brand Name:XINLAND
Key Selling Points:Long Service Life
Showroom Location:None
After Warranty Service:Online support
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
Weight (KG):0.2 KG
Local Service Location:None
Product name:RGB Laser Diode Module
Output Power:1mW~100mW
Housing material:Brass or aluminium
Certificated:ISO9001:2008, CE, ROHS, MSDS
Output Aperture:2.0mm, 3.0mm, 5.0mm
Divergence:0.2 to 1.0 mrad
Wavelength:450nm, 520nm, 635nm
Beam Size:<1,0mm @1m, or <2,0mm @3m, or <5,0mm @10m
Supply Ability
Supply Ability:100000 Piece/Pieces per Month
Packaging & Delivery
Port:Xi’an Shaanxi
Lead Time :
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 15 | To be negotiated |
fiber coupled RGB 635nm 520nm 450nm laser diode module

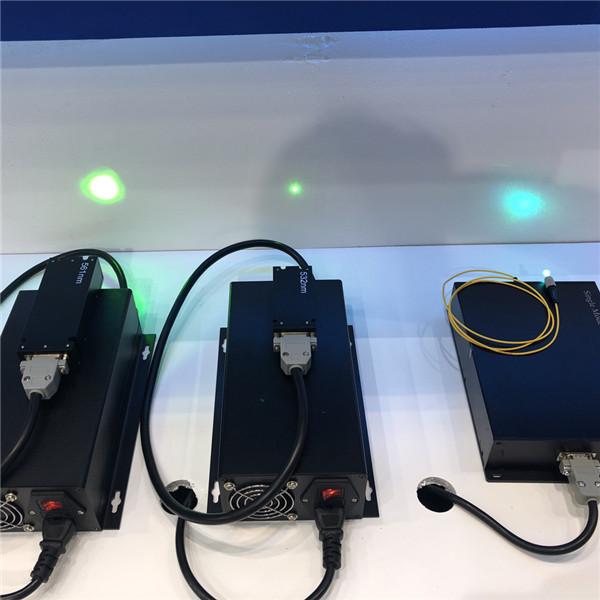

XINLAMND could customize RGB fiber-coupled laser
module. The diameters of fiber have 105μm,125μm,170μm,200μm,multi-mode fiber, etc. It has SMA, FC or ST connector and different fiber length, The wavelength includes 445nm,520nm,635nm. The LD driver or TEC temperature control could be customized.
XINLAND could customize RGB laser diode module.
The wavelength includes 445nm, 520nm, 635nm. The divergence is 0.2-1.0mrad, and output aperture is 2.0mm, 3.0mm, 5.0mm.
| Key Features Of RGB Free Space Laser Diode Module: | Applications: |
|
Compact size · TTL and analog modulation · Adjustable output power up to 100mW · High optical power and multi-color · Housing material: aluminum anodized or brass · Fiber-coupled output or collimated beam output · Uniform intensity distribution · High reliability and high beam quality |
1. Laser scanning display 10.Scientific research
|
XINLAND RGB Fiber Coupled Laser Module Specifications:
| Item | Specification |
| Wavelength | 445nm, 520nm, 635nm |
| Output Power | 1mw-300mw |
| Fiber Core | 105μm,125μm, 170μm, 200μm |
| Numerical Aperture | 0.22mm, 0.37mm, 0.53mm |
| Fiber Length | 0.5-10m |
| Optics | Glass lens |
| Packaged Type | Through Hole |
| Case Material | Aluminum black anodized |
| Beam Size | Customized |
| Connector | FC, ST or SMA |
| Dimension | Customized |
| Divergence | 0.6mrad |
| CDRH Class | Class IIIb Laser, ROHS compatible |
| Operating Temperature | -10-50°C |
| Storage Temperature | -40-80°C |
| Voltage Stability | >98% (at 2.7-5.5VDC) |
| Temperature Stability | >95% (at -10°C-50°C) |
| Protection | Static, Surge, Reverse Polarity Protected |
| Lifetime | >6,000hrs |
