Vertical Glass Washing And Drying Machine Easy Operation

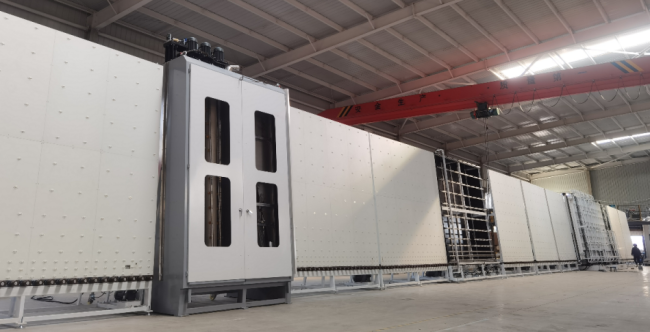

Automatic Vertical Glass Washing And Drying Machine Glass Washing
The automatic vertical glass washing and drying machine is used for cleaning and drying the upper and lower surfaces of ordinary flat glass and high-quality LOW-E glass. It is dry-cleaned by the feeding section and the cleaning air.

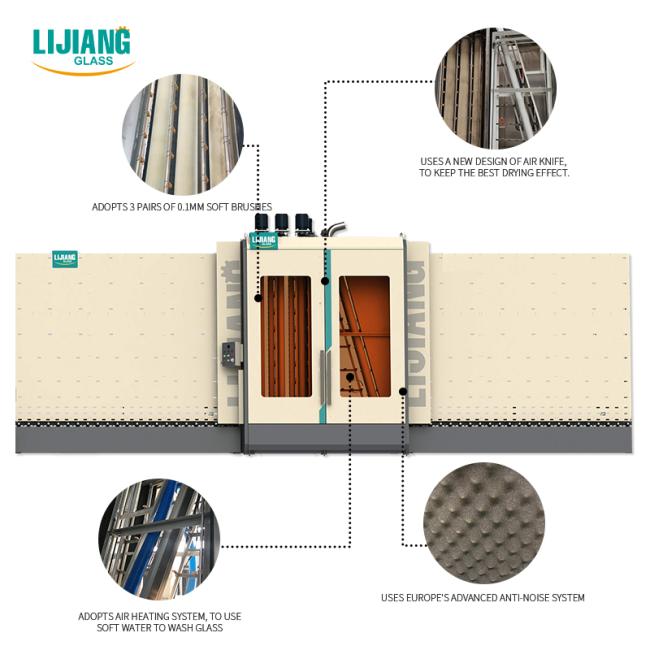

- All 3 sets of soft brushes can be cleaned with low-e glass and 4 sets of water spray in the glass washer.
- The washing/drying area of the automatic glass washing machine is all made of steel.
- The main power consumption is mainly in the hollow line cleaning and drying section.
- The blades of the glass washing machine adopt a floating design, which always maintains the correct and precise distance between the glass and the blades in the embossing and design part.
- The driving wheel of the cleaning dry section of the glass washing machine: the front and rear driving wheels move evenly, both of which are active. Regardless of the size of the glass, make sure the glass passes through smoothly.
- The brush shaft and bearing of the glass washing machine are made of steel, which has good cleaning effect and long service life.
- The dryer is designed with sound insulation to reduce noise....
►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.
Other product of Insulating glass processing
Vertical Insulating Glass Production Line LJBZ2535G
Main Features of Insulating Glass Production Line
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
Technical data of Insulating Glass Line
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
| NAME | ORIGIN | BRAND |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | Taiwan | LINHAI |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| IG line with gas filling online | ||
