PLC Automatic Molecular Sieve Filling Machine Desiccant Filler
Price:
Negotiable
MOQ:
1
Delivery Time:
45 days
Brand:
LIijiang Glass
Product Description

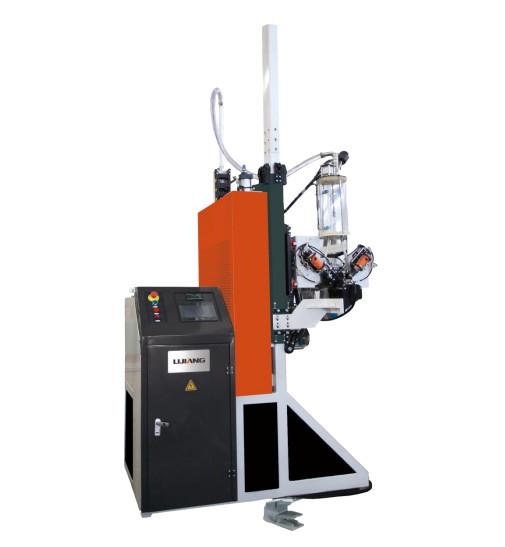

Automatic Molecular Sieve Filling Machine Desiccant Filler
Automatic desiccant filling machine can punch holes in the hollow glass interval frame, fill the desiccant, and seal the butyl glue in one time
Main feature of Automatic Desiccant Filling Machine
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5-0.9mm or 1.0-1.5mm sizes
• Touch screen interface, simple and visible
• Desiccant Filling machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve
Main technical parameter of Desiccant Filling Machine
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Lowvoltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-26.5.mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1400mm*1200mm*3600mm |
