Energy Saving Industrial Glass Washer , Perpendicular Glass Washing Machine 50HZ
Saving- energy Vertical Glass Washing Machine With 304 Stainless Steel Materiials

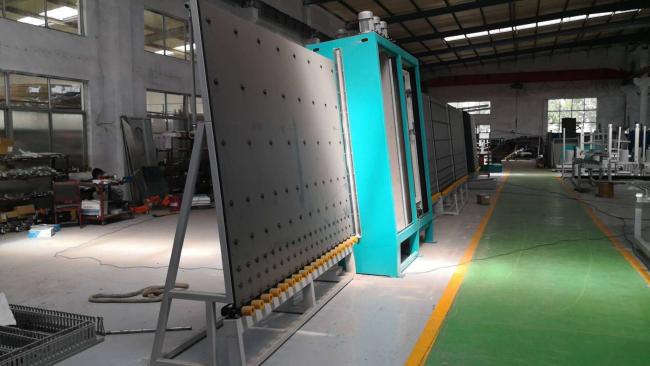

Automatic Vertical Glass Washing and Drying Machine has the max size of 2500mm*4000mm, using the PLC control system and touch screen interface. Can wash low-e glass well, automatically sensor low-e side.
| Max.glass size | 2500*3500mm/2200*3000mm/2000*2500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 48m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW/27KW/24KW |
| Dimension | 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm |
| Weight | 6500kg/6000kg/5200kg |
Features: Automatic insulating glass production line
1.Automatically distinguish the coating side of coated glass and low-E glass.
2. PLC control system with touch screen operation.
3. Machine work and fault dynamic display.
4.Standard double layer IG and three layers IG.
5.Inside panel press, it can produce stepped IG (optional).
6.Frequency control designed for glass transmission.
7. Output: 800 - 1000 units-single shift 8 hours (double layer IG, size 1m).
8. Panel press open able, easy for maintenance.
LIJIANG GLASS is a professional manufacturer specializing in the insulating glass machinery.We are active in the international market and get all the necessary international standard and certifications. It is a pleasure to show LIJIANG GLASS qualified equipment and customized service with a consideration of long term relation.
