Industrial Spacer Bending Machine Four Storages , Glass Drilling Machine 1250 Kg

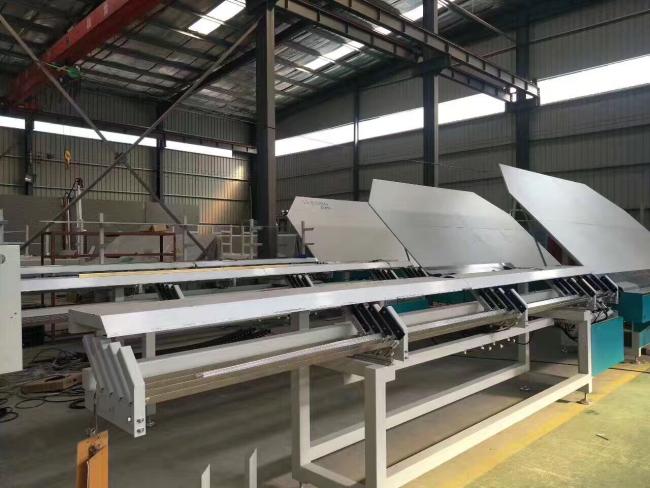

Automatic Hollow Glass Spacer Bending Machine With Drilling Gas Filling Hole And Four Spacer Storages
APPLICATION
The Automatic Hollow Glass Spacer Bending Machine With Drilling Gas Filling Hole And Four Spacer Storages is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically. The machine can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed. So the machine can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame. So it is necessary equipment in hollow glass productions.
| Power supply | 200V 50Hz |
| Total power | 2.5KW |
| Air pressure | ≥0.65Mpa |
| Min spacer frame size | 250*380mm |
| Max spacer frame size | 2500*3000mm |
| Spacer width range | 5.5mm~24mm |
| Overall dimension | 10500*2200*2600mm |
| Production tolerances | ± 0.05mm |
| Weight | 1800kg |
Main Features
Spacer auto connecting and cutting
Machine auto stop when no spacer supplied
Four different spacer size storage units
Can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (option)
Support continuous bending , auto avoid spacer connection while bending and cutting
.Auto-connector
Remote control function
USB input function ,it can read the excel data directly
Japan servo motor system to feed and bend the aluminum bar.

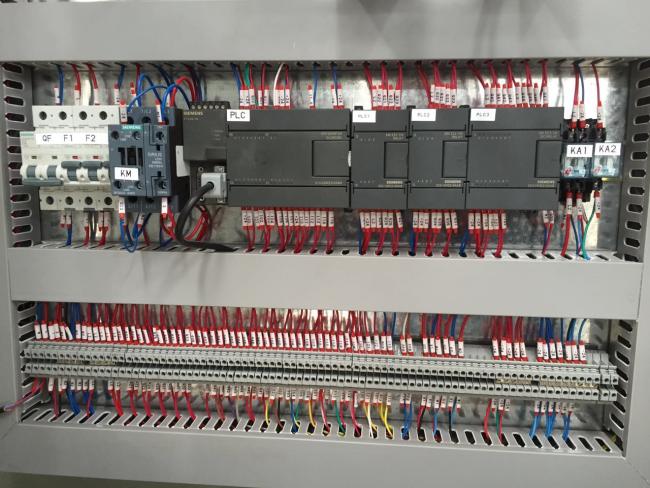

The whole machine is controlled by Siemens PLC. The whole machine features easy and quick operation.

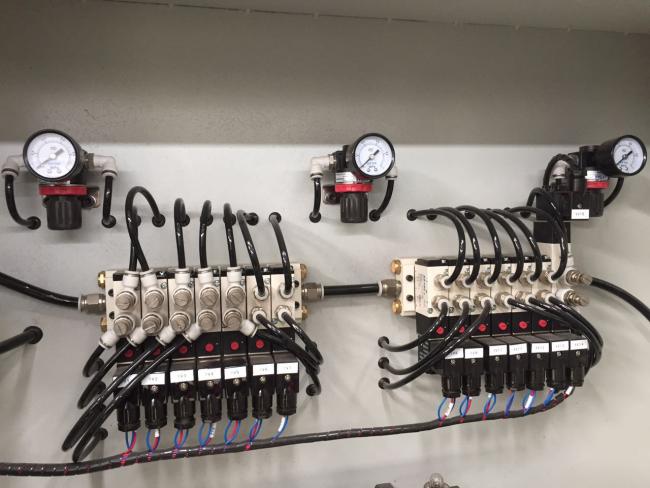

Taiwan Airtac pneumatic components.
Machine hand help to bend the bigger spacer
Pause and reset device,convenient for machine malfunction maintained
Spare parts of all machine have code ,convenient for after-saleHeavy duty connectors ,convenience and safety for installation and debugging
| Power consumption | 2.5KW |
| Air source | 0.65Mpa |
| Power supply | 380V 50HZ |
| Min.processing size | 250*250mm |
| Max.processing size | 2000*2000mm |
| Specification | 10500*2200*2600mm |
| Aluminum spacer bar | 5.5~24mm |
Machine Deatails
