Automatic Insulating Glass Warm Edge Spacer Bending Machine With Drilling Gas Filling Hole
The Automatic Insulating Glass Warm Edge Spacer Bending Machine With Drilling Gas Filling Hole can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame. The machine can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed. So it is necessary equipment in insulating glass productions.
The machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically.
Main technical parameter
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Optional functions
1) USB input function, can read excel form file directly.
2) Bend stainless steel spacer
3) Spacer printing function
4) Label printing function
5) Automatic drill gas filling hole function
6) ERP connection function
7) Manipulator clamping function for support big frame

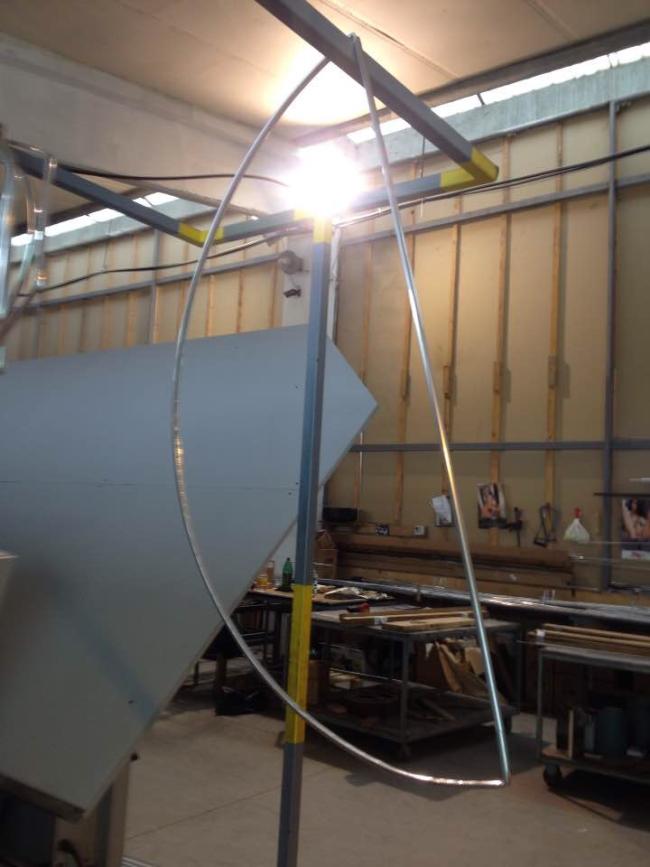

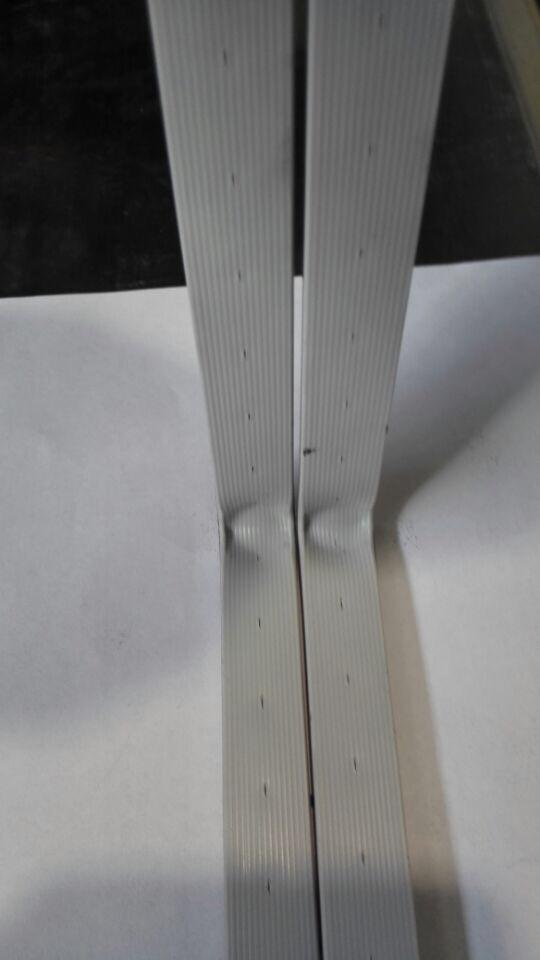

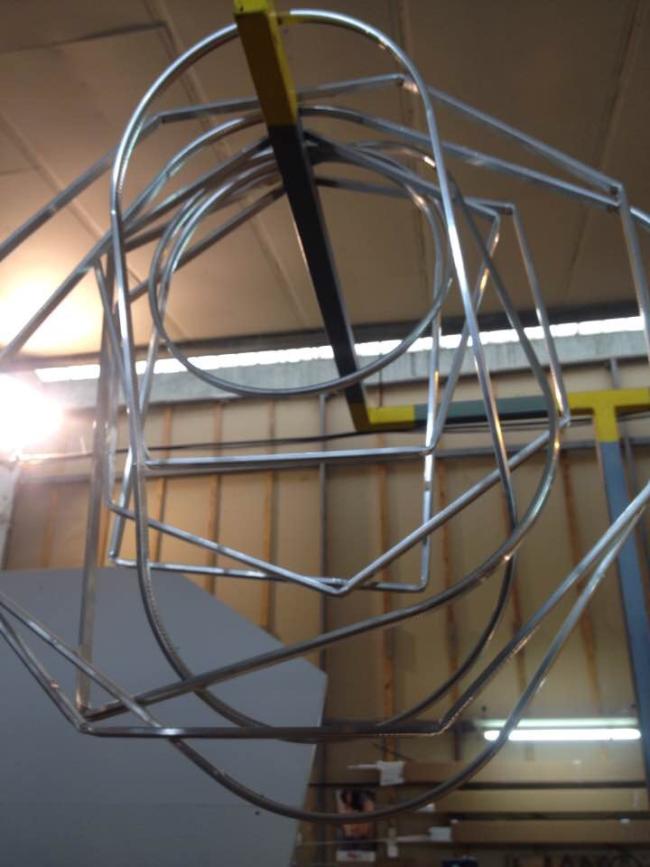

Machine details
