Hollow Glass Sealant Extruder 0.5-0.7 MPa Air pressure With Eight Servo Motors
Full Automatic Insulating Glass Sealant Extruder Machine With Eight Servo Motors
Application:

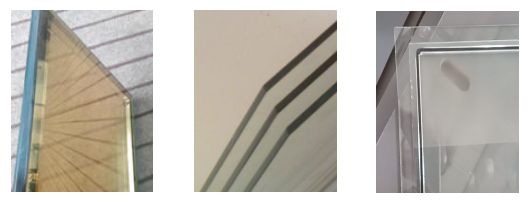

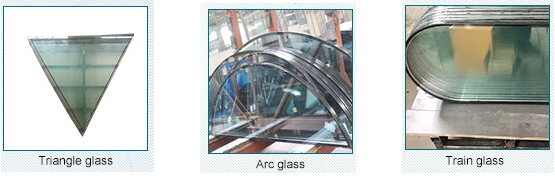

LJTJ2540 IG sealing robot machine has eight servo motors, the machine uses roller and scraper to keep coat glue wheel on glass corners smoothly without any bubbles. Double glazed glass, triple , stepped and shaped glass all could be done well.
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 8700*2000*3500mm |
Main Feature:
--After the sealing corners no need for modify.
--Third glass can be stored to achieve a streamlined and online working(optional).
--It can be equipped with two sets of completely independent glue supply system(including mixer) ,two kinds of sealant with quick switch.one-click operation(optional).
--Suitable for large-scale glass deep-processing enterprises,reduce labor intensity and improve efficiency.
--All intelligent touch interface,easy to operate;support triple insulating glass.
—Servo control system uses world-renowned brands stable performance.
--Conveyor belt transporing the glass smwthly with precise positioning.
--The key components using special materials from refined with stable operation long service life.
