High Speed Insulating Glass Filling Machine 300*250 Mm Fit Shaped Frame Making
Hollow Glass Desiccant Automatic Filling Machine For Large Particle Molecular Sieve For Shaped Frame Making
Main Advantages
1.Adopts PLC control, positioning, drilling, filling automatically, high efficiency
2.Filling can be folded aluminum frame and the general line angle aluminum frame
3.Filling height can be adjusted according to the size of the aluminum frame
4.Use automatic feeding device can also automatically feeding artificial feeding
5.Long Edge,short Edge filling volume can be controlled separately by adjusting the individual filling time to adjust filling volume
6.In the filling process to increase the flow rate through the auxiliary vibrator molecular sieve, thus greatly improving the speed of filling, sealing directly after filling is complete, to prevent spilled molecular sieves
| Main parameter |
Desiccant filling machine Type LJGZ 2020 Filling aluminum frame’s maximum size:2000mm*2000mm Filling aluminum frame’s minimal size:300mm*250mm Article aluminum specifications:6A-27A Air source:≥0.65MPa Power supply and power consumption:AC220V 50Hz 1.8KW Molecular sieve diameter needed:0.5-0.9mm Dimension:1300mm*1100mm*3650mm |
Main components
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Low voltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |

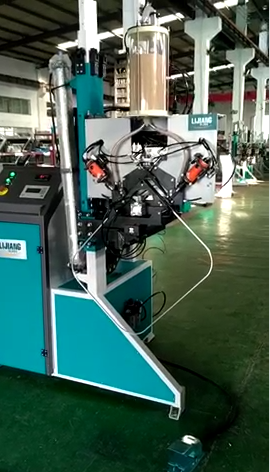

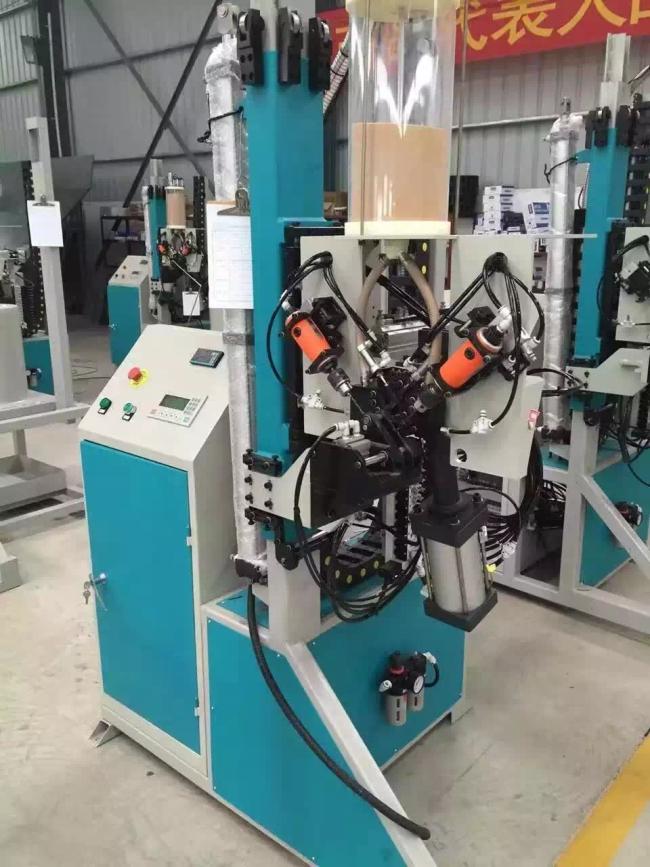

Machine details
Packing & delivery
Seaworthy plastic or plywood aviloble.
