500 Kg Vacuum Hoist Lifting Systems , 2.5 KW Glass Vacuum Lifting Equipment
500 Kg Vacuum Hoist Lifting Systems , 2.5 KW Glass Vacuum Lifting Equipment
Application
Intruduction
This vacuum glass lifter is for handling insulating glass sheet.
- This glass lifter is able to lift the glass sheet with 500kg
- It is equip with 4 suckers. But the sucker can be add according to need of the client.
- The equipment is Stable, Easy to use and safe.
- The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

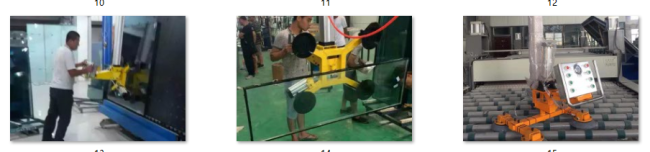

Used For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Main technical parameters
|
Max load
|
500KG
|
|
Around rotary scope
|
90°
|
|
Column height
|
3400mm or 3900mm
|
|
Track length
|
4m
|
|
Lifting height
|
1.4m
|
|
Number of sucker
|
4
|
|
Moving mode
|
Manual
|
|
Operation mode
|
Manual switch valve
|
|
Air pressure
|
0.5mpa-0.8mpa
|
