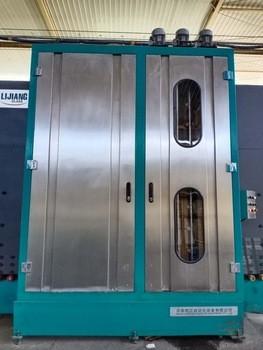

Insulating Glass Vertical 60mm Washing And Drying Machine
insulating glass vertical washing and drying machine with good price
Main feature:
- washing and drying machine Using 6 pieces of soft brushes
- Wash online and offline low-e glass, automatically recognizes Low-e film
- Washing part adopts the design of upper and lower layered structure
- Adopt variable frequency fan, energy efficient, good cleaning effect
- The air knife can automatically adjust the width of the air knife according to the thickness
- Using intelligent intermittent energy-saving working methods
- Hierarchical type washing system
- Water tank automatic temperature control, water replenishing system
- European silencer system
- 304 stainless steel materials
Technical data
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
Detail image

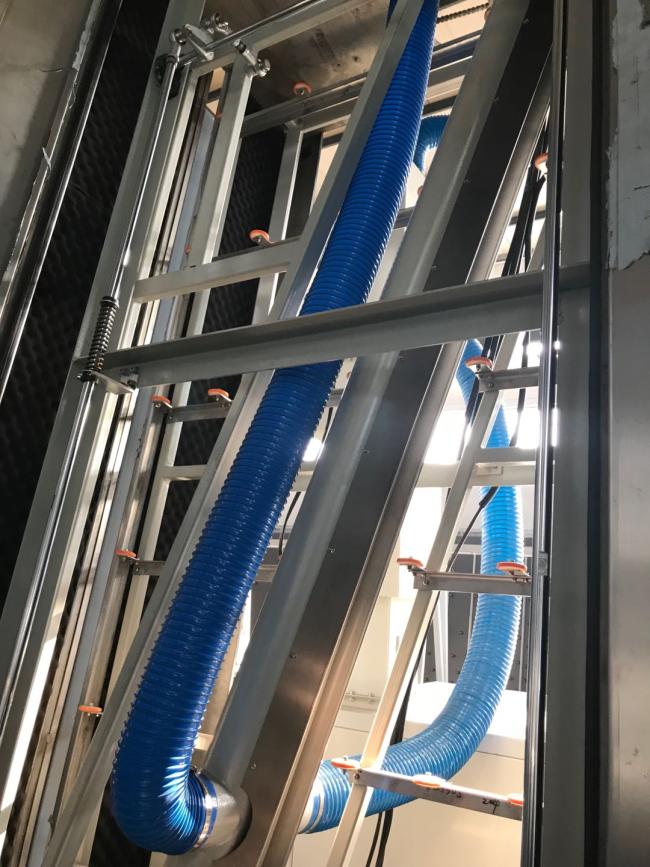

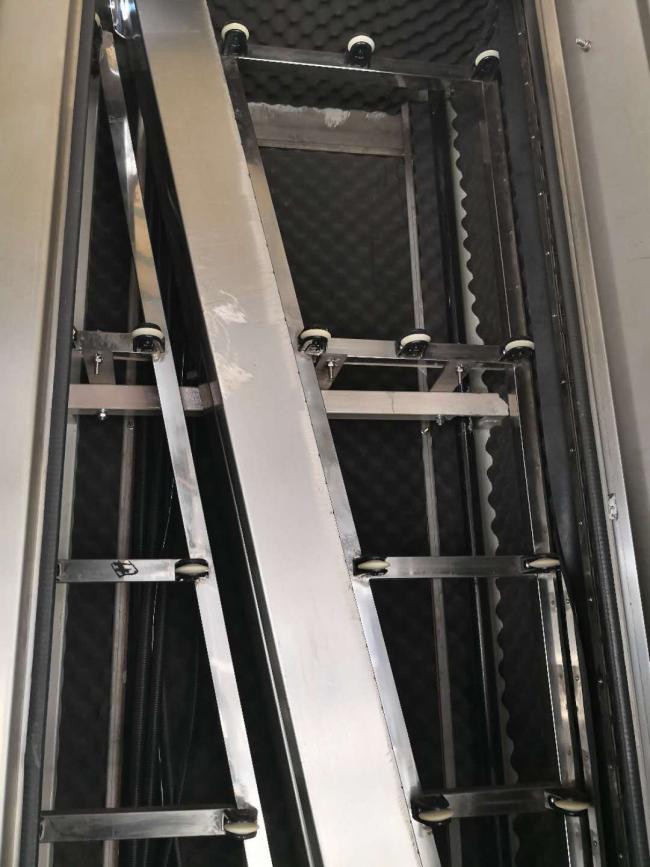

The washing machine uses 304 stainless steel materials
The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts.

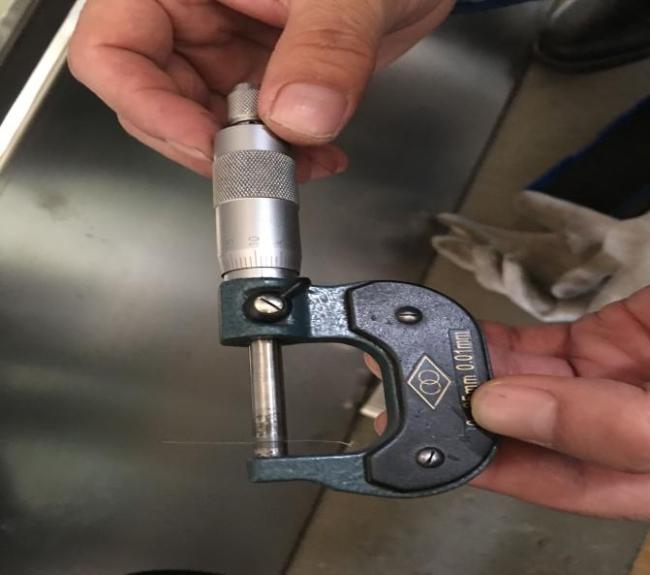

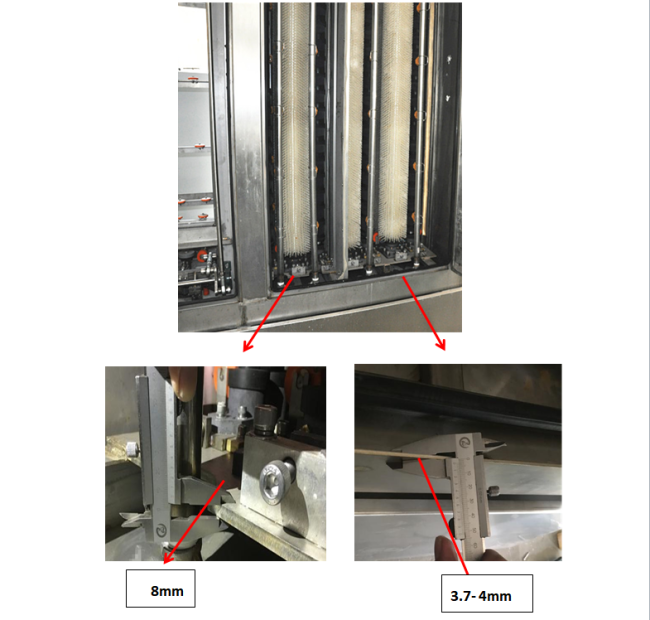

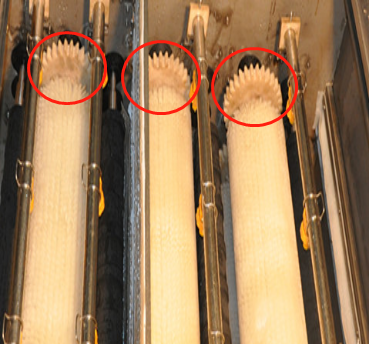

The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
about us

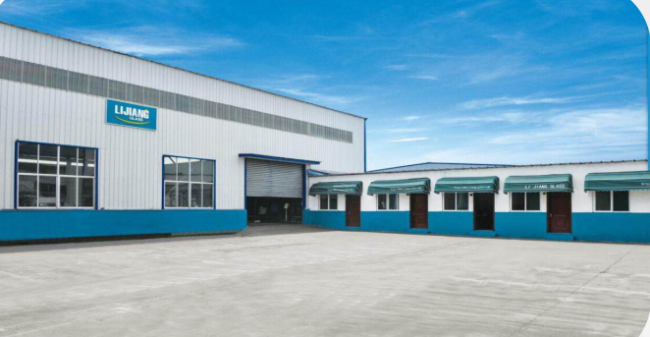

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city-Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.
