Insulating Glass Processing 3 - 15mm Vertical Glass Washing Machine
High Speed Automatic Vertical Glass Washing Machine For Insulating Glass Processing

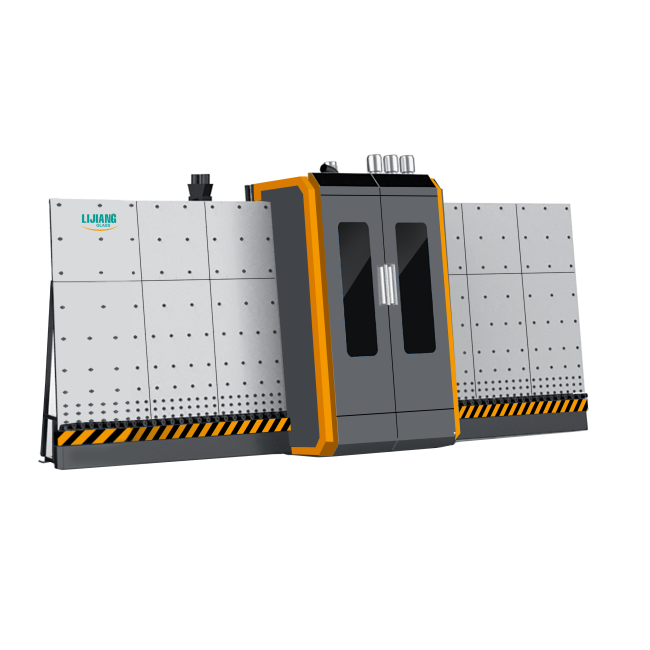

1. Overview of Automatic Vertical Glass Washing Machine
Auomatic vertical washing machine can complete the following functions: pre-cleaning, cleaning and drying of white glass and low-e glass.It is in the production of slot aluminum insulating glass. The washing machine has the advantages of small occupation area, high efficiency, reliable performance and convenient maintenance.
2.Main feature of glass washing machine
- Automatic vertical washing machine can Wash online and offline low-e glass, automatically recognizes Low-e film
![]()
- Automatic vertical washing machine adopts Siemens control system, which can freely adjust the cleaning speed of cleaning machine.
-
![]()
- Water tank automatic temperature control, water replenishing system Cleaning and water tanks are made of stainless steel and corrosion resistant materials, and the transfer rollers are acid and alkali resistant rubber rollers, which are automatically adjusted according to the glass thickness. The pre-cleaning section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the right speed.
- 304 stainless steel materials
- Automatic vertical washing machine Adopt variable frequency fan, energy efficient, good cleaning effect
- Hierarchical type washing system
- Automatic vertical washing machine Using 6 pieces of soft brushes
- The air knife can automatically adjust the width of the air knife according to the thickness
- Automatic vertical washing machine Using intelligent intermittent energy-saving working methods
- Automatic vertical washing machine adopt European silencer system
3. Parameters of Vertical Glass Washing Machine
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |
4.Related products

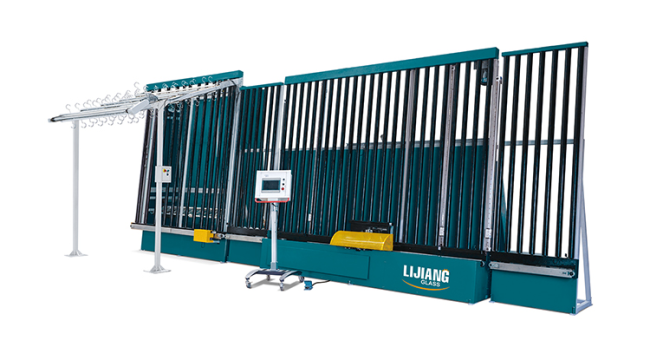

Automatic butyl extruder spreading machine
Automatic butyl extruder spreading machine can automatic spread butyl extruder ,lay a foundation for totally automatic of glass factories in the future.
· feature is that it can automatic spreading circular frame ,in addition,aim to big frame,it has mechanical hand to support and can load two barrels if butyl.
· Automatically repair glass comers with beautiful surface.
· Smooth convey without scratch and pollution.
· Single function partsare equipped with manual functions,easy adjustment.
| Aluminum spacer width | 6-24mm |
| Gluing Speed | 2-50m/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 7KW,50HZ |
| Dimension | 10000×1310×3150mm |
