Vertical insulating glass sealing robot
+
Equipment advantages
- Choice of minimum and maximum glass sizes
- Use 8 servo motors
- Adopt Japan Yaskawa servo control system, stable performance
- Linear adjustment can automatically measure glass size, glue depth and glue speed
- Using synchronous belt, stable transmission and accurate position
- Highly standardized spare parts and high precision ensure that the machine can be used for a long time
- Glass corners are filled, no bubbles, smooth surface, no need
- Automatic high efficiency machine
- The new scraper design is particularly suitable for making the train IG have very flat sides and corners, and no bubbles.
- Automatically repair bright glass corners
- Stable delivery without scratches and pollution
- Single-function parts have manual functions and are easy to adjust
- Special-shaped IG unit (optional)
- Stepped IG unit with four sides (optional)
- Double and triple IG equipment
Sealing the insulating glass twice, sealing and bonding the insulating glass, and also protecting the first sealing layer.
Main technical parameter
| Max.glass size | 2500mm*4000mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
Product picture display
Eight Servos
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
The Device of Sealing Part
The Japanese Yaskawa servo motor is used to control the 360 ° rotation of the seal. Set up a scraper to scrape off excess glue without having to repair the glass corner a second time.
Two Sets of Pump A & Pump B
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

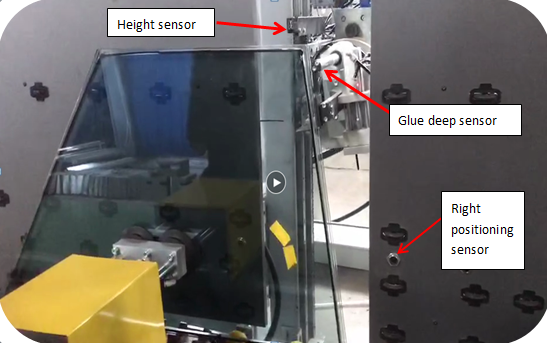

Intelligent Sensor
Automatically position the glass and sensor glue deep, the coating speed can be adjustable online.
Stepped glass (Optional)
We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.
Shaped Glass and Triple Function (Optional)
With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.
