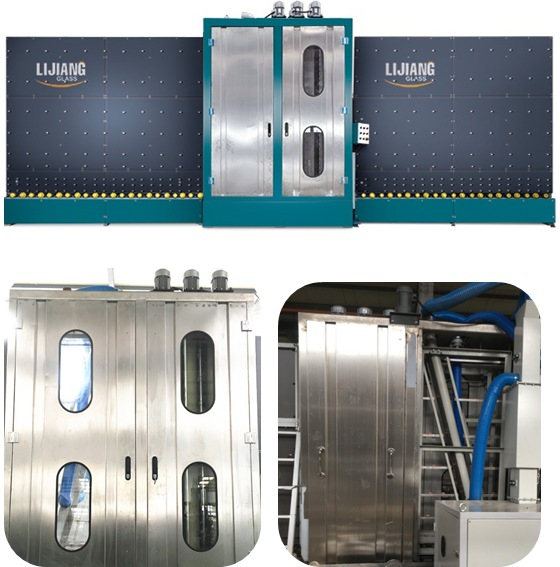

Glass Washing Machine And Drying Machine With Optional Pre-washing

Main feature:

• Automatically detect low-radiation, high-performance glass
• On-line and off-line cleaning of low-e glass, automatic identification of low-e film
• The air knife can automatically adjust the width according to the glass thickness
• Adopt intelligent intermittent energy-saving working mode
• Classified washing system

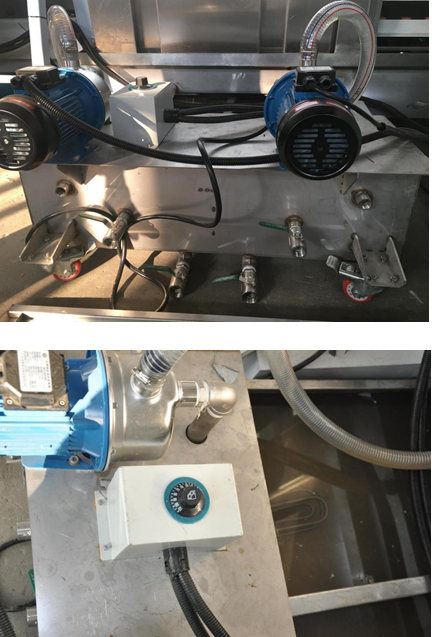

• Automatic temperature control of water tank and water replenishment system
• European silencer system and stainless steel drying system

Technical data

Detail image

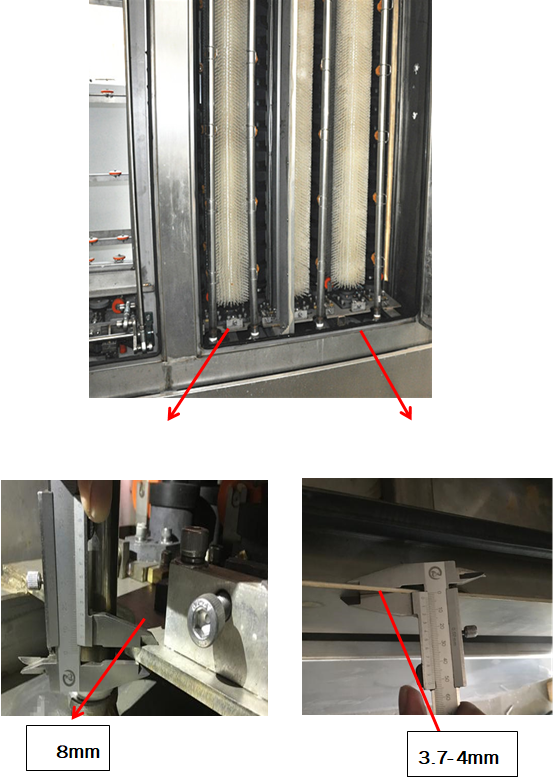

1. Materials
The entire washing and drying part is made of 304 stainless steel, including dinner plates and internal spare parts.

The thickness of the board can reach 4mm and the inner board can reach 8mm. The equipment has better performance and longer service life.

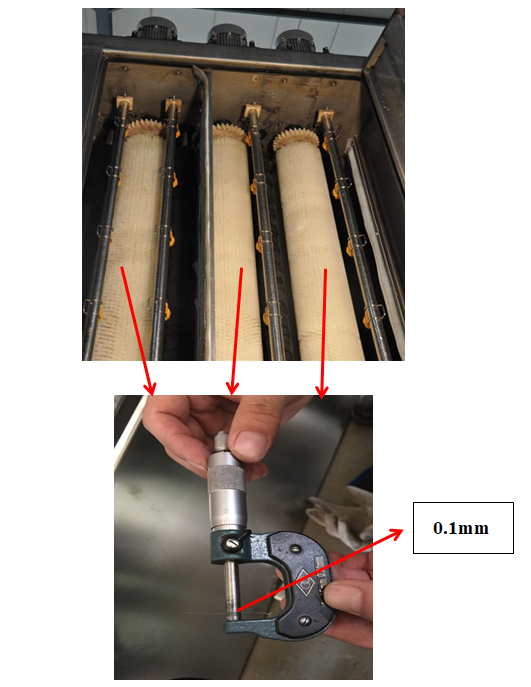

2. Six brushes

It has 6 brushes, all soft brushes, which can clean flat glass, tempered glass and low-e glass. Its bristle diameter is less than 0.1 mm and will never damage the glass, especially for low-e glass.

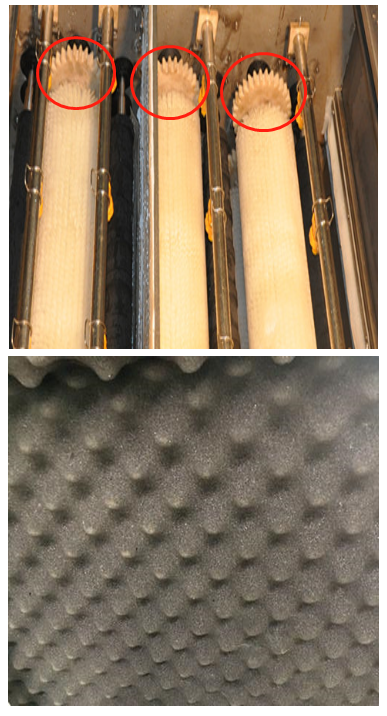

3. Noise reduction device
Using nylon gears and sponges can control the noise below 90 decibels.

4. Noise reduction device
Using nylon gears and sponges can control the noise below 90 decibels.

5. Automatic recognition of glass thickness

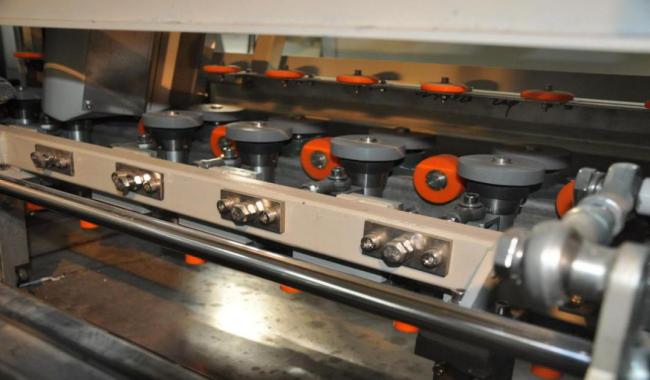

1). There is a universal joint device. When the thickness of the glass is changed, the air knife will move back and forth to adjust the distance, so that the relative distance between the air knife and the glass is constant, so as to avoid the change in the thickness of the glass due to damage to the glass.

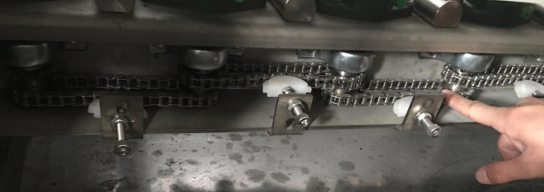

There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

​
