Insulating Glass Coating 7kg Butyl Extruder Machine
Glass coating machine insulating glass Butyl Extruder Machine for hot melt extruder
Overview of insulating glass Butyl Extruder Machine
Full Automatic butyl extruder spreading machine can automatic spread butyl extruder ,lay a foundation for totally automatic of glass factories in the future.
Main feature of Automatic butyl coating machine
1.Glass coating machine has mechanical hand ,Glue stability
2.Automatic butyl extruder machine can automatic coating butyl extruder
3.Butyl coating machine can load two barrels if butyl.
4.Automatic butyl extruder machine can Smooth convey without scratch and pollution.
Technical parameter of Glass coating machine
| Aluminum spacer width | 6-24mm |
| Gluing Speed | 2-50m/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 7KW,50HZ |
| Dimension | 10000×1310×3150mm |
Detail of Insulating Glass coating machine
Related products

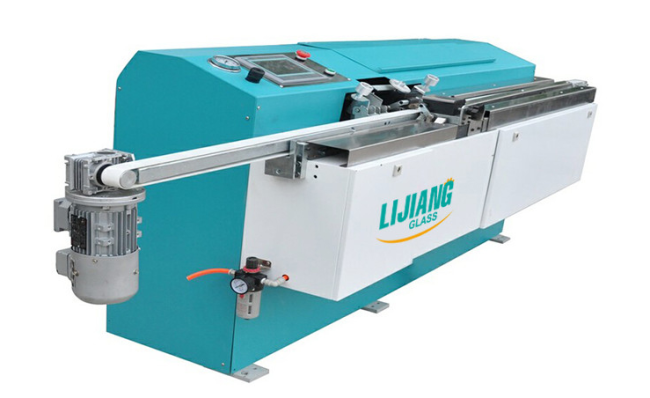

Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
|
Squeeze pressure |
10-18MPa |
|
Temperature |
110~140℃ |
|
Aluminum spacer width |
6A-27A |
|
Speed |
0-40m/min |
|
Diameter of butyl cylinder |
200mm |
|
Air supply |
0.4m³/min |
|
Air pressure |
≥0.6MPa |
|
Total power |
380V, 5KW,50HZ |
|
Dimension |
2600×680×1100mm(L×W×H) |
|
weight |
650kg |

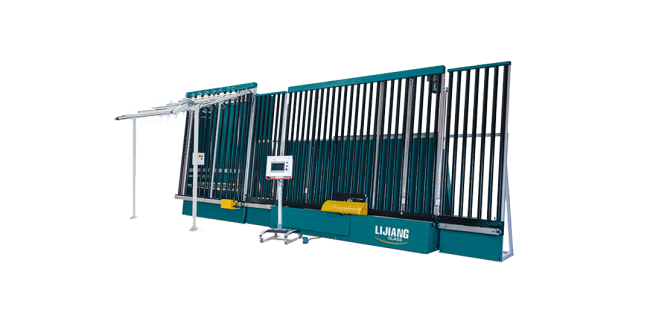

Aluminum frame transfer machine LJSKJ02
•Spacer frame transport
•Easy operating, simple and flexible
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |

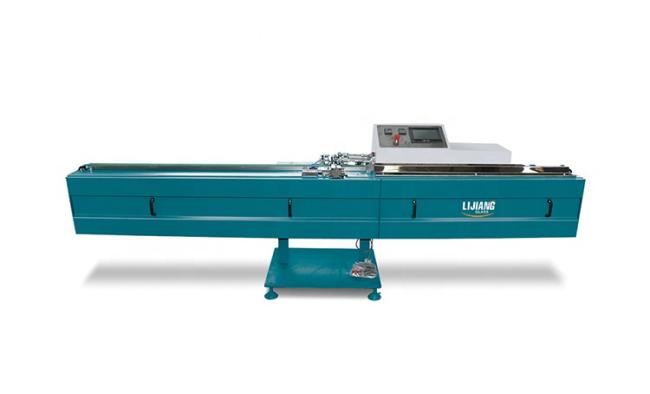

Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data
|
Squeeze pressure |
10-18MPa |
|
Temperature |
110~140℃ |
|
Aluminum spacer width |
6A - 27A |
|
Speed |
5-47m/min |
|
Diameter of butyl cylinder |
200mm |
|
Air supply |
0.4m³/min |
|
Air pressure |
≥0.6MPa |
|
Total power |
380V, 5.7KW,50HZ |
|
Dimension |
2800×700×900mm(L×W×H) |
|
weight |
650kg |
