280x450mm Vertical Insulating Glass Production Line For Double Glass Processing
Price:
USD 90000.00
MOQ:
1
Delivery Time:
30days
Brand:
Lijiang
Product Description
Good quality vertical Insulating Glass Production Line for double Glass Processing
Application
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

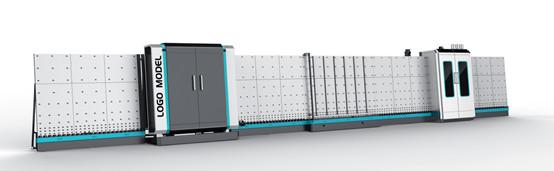

LJBZ2535G Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)
1,Loading section(with low-e checking)

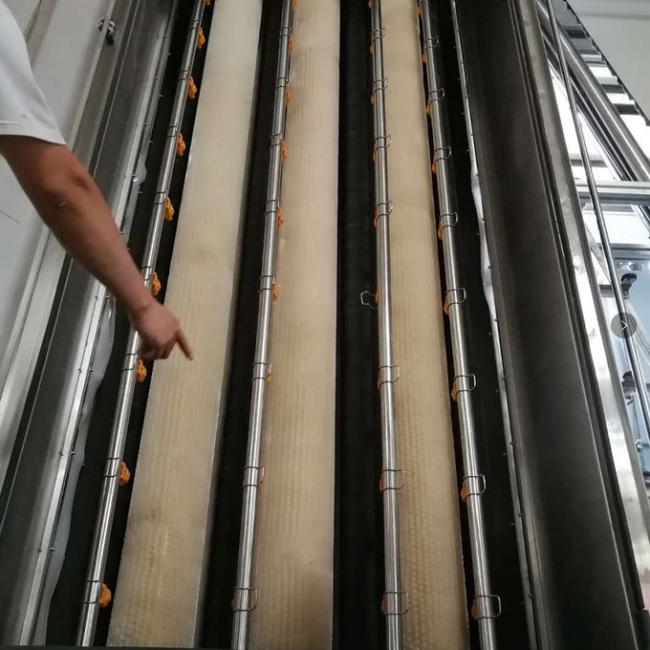

2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:
Gas filling on line syetem(option)
About Gas filling online of LJBZ2535G Vertical Automatic Insulating glass production line, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing
process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.
process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.
Parameters
| Washing speed | 2~10m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 60mm |
| Conveyor height | 500mm |
| Min.glass size | 450mm×280mm |
| Max.glass size | 2500mm×3500mm |
