Automatic Spacer Bending Machine Aluminum Bending Machine For Insulating Glass Making
Automatic spacer bender machine LJZW2020A
Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Performance:
1.4 different spacer size storage units
2.Can bend aluminum spacer Spacer auto connecting and cutting ,auto avoid spacer connection while bending and cutting
3.Support continuous bending , Auto-connect with next spacer.
4.machine auto stop when no spacer supplied
5.USB input function ,it can read the excel data directly

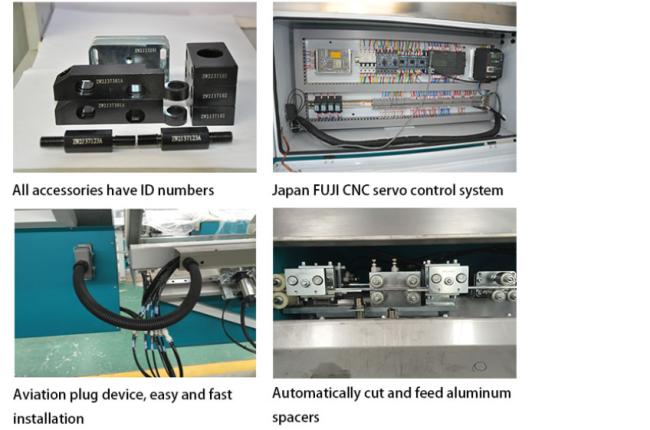

6.Spare parts of all machine have code ,convenient for after-sale
7.Heavy duty connectors ,convenience and safety for installation and debugging

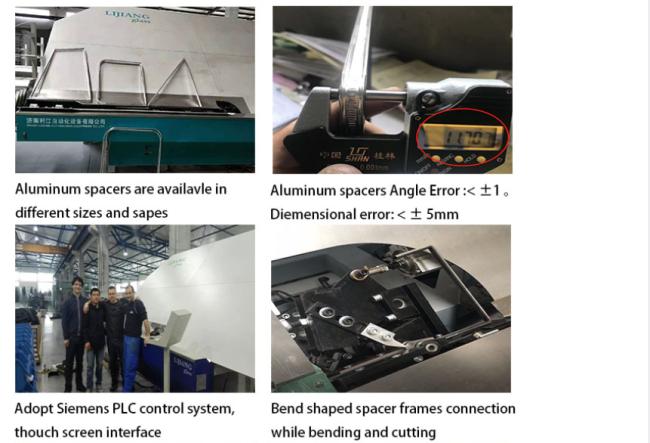

8.German siemes plc control systerm &servo control system
9.Magnetic valve use Taiwan Airtac Main feature
10.Magnetic valve use Taiwan Airtac .
Parameter:
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 0-47m/min |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
