SPA series of single-phase voltage modulation module adopts imported large-scale industrial-grade integrated circuit design, internal integration of phase-shifting trigger circuit, single-phase or bi-directional SCR, RC resistance and capacity absorption circuit and power supply circuit integrated into one. The trigger-on angle of the output thyristor can be automatically or manually adjusted to change the voltage on the load, thereby adjusting the output power and realizing stepless adjustment of the load from zero volt to the grid voltage. According to the rated voltage of single-phase AC load, it can be divided into 220V and 380V. Special products can be custom
Application
Heating: electric furnace, injection molding equipment, thermoplastic molding equipment, textile equipment, infrared heating, power distribution system, drying system
Motor: fan motor, pump motor, injection molding machine
Lighting: public lighting, industrial lighting
Other stage: transformer, inductor coil, welding, electroplating
Parameter
| Model |
SAP4805D SAP4810D SAP4815D SAP4820D SAP4825D SAP4840D |
SAP4805D SAP4810D SAP4815D SAP4880D SAP4890D SAP48100D |
|
| Load voltage | 40—530VAC | ||
| Max Load current | 5A,10A,15A,20A,25A,40A | 50A,60A,70A,80A,90A,100A | |
| Isolation voltage | ≥2500VAC 1min | ||
| Insulation voltage | ≥2500VAC 1min | ||
| Control voltage | 3—32VDC | ||
| Control current | 6—25mA | ||
| Turn-on voltage | ≤1.3VAC | ||
| Off-state leakage | ≤3mA | ||
| Off-state dv/dt | 500v/us | ||
| On-off time | 10ms | ||
| Frequency range | 47/63Hz | ||
| Work temperature | -40°C—80°C | ||
| Indication | LED indication | ||

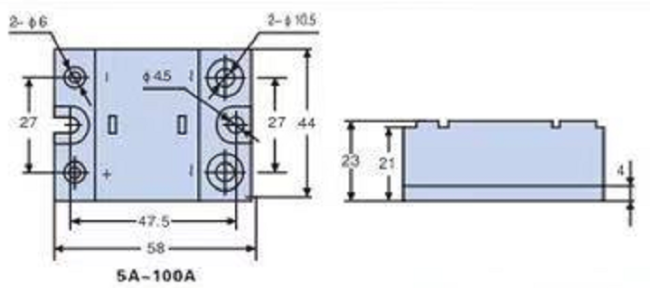

Dimension
