Built - In Induction Thyristor Power Controller Photoelectric Isolation Three Phase

Three Phase Thyristor Photoelectric Isolation, Voltage Regulation Module, Soft Starter

The fully isolated three-phase voltage modulation module of CTM integrates three-phase potential detection, phase-shift circuit, trigger circuit and three groups of anti-parallel unidirectional thyristors, without the need for external synchronous transformers, through 0-5VDC (1-5VDC), 0-10VDC (2-10VDC), The automatic control of 4-20mA signal or the manual control of the external potentiometer can achieve stepless adjustable three-phase load voltage from 0 to 380V of the full voltage of the power network by changing the on-off angle of controllable silicon.

Application

Heating: electric furnace, injection molding equipment, thermoplastic molding equipment, textile equipment, infrared heating, power distribution system, drying system

Motor: fan motor, pump motor, injection molding machine

Lighting: public lighting, industrial lighting

Other stage: transformer, inductor coil, welding, electroplating

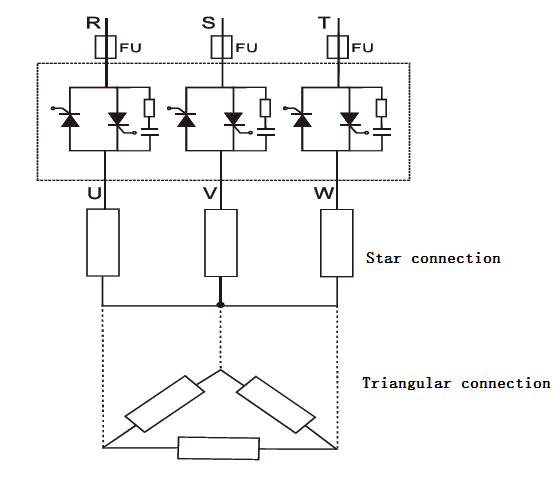

Typical application

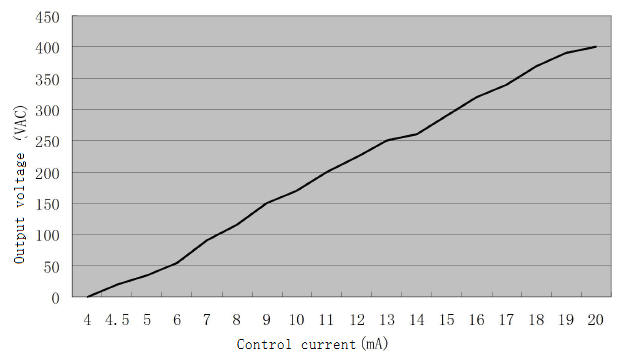

Parameter

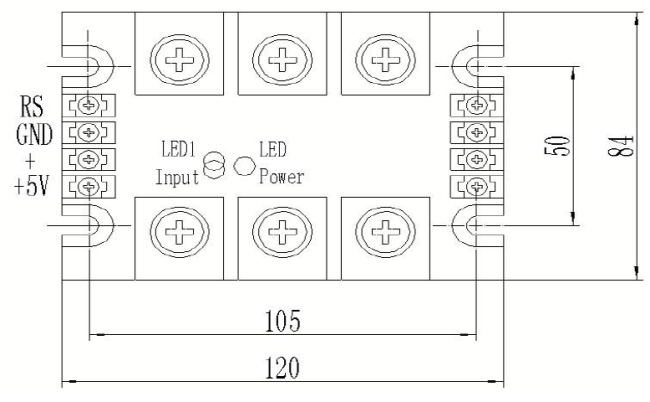

Dimension

Shipment and Packaging
