150A Thyristor Power Controller Induction Resistance Load Modbus Communication

                      Single Phase Thyristor Power Controller InductionResistance Load Modbus Communication Closed Loop

Features

1. Adopt the American ATMEL company high reliability CPU;

2. Adopt SMT surface patch technology;

3. With constant current, constant voltage, constant power and other conventional functions;

4. Zero-crossing mode can be applied to inductive load, reducing harmonic interference to the power grid by

5. 5%. Phase shift zero-crossing automatic switching to achieve low-temperature protection of variable resistive load;

6. LED man-machine interface is used to realize human-computer interaction;

7. Rich programmable AI/DI/DO interface;

8. Standard RS485 interface, support modbus-RTU protocol;

9. Support for a variety of extension functions (profibus communication, modbusTCP, temperature control module, etc.)

10. Under the condition of air cooling, the R value is as high as 2848, the total pressure loss of the air duct is as low as 7.5 Pa, and the total current mass of

11.150 A is only 660g.

Application

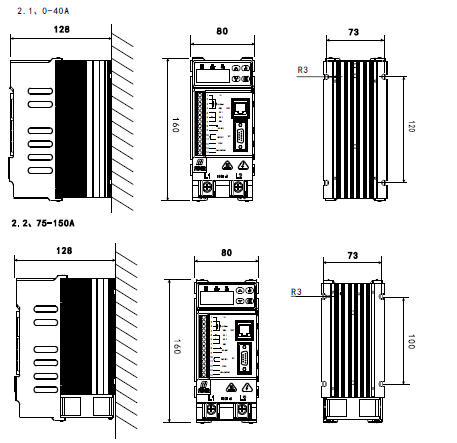

Dimension

Shipment and Packaging
