Intelligent Prosecution Type Solid State Relay Built In Over Heat Protection
Price:
To be discussed later
MOQ:
1 set
Delivery Time:
5-8 work days
Brand:
Noker
Product Description
Intelligent Prosecution Type Solid-State Relay Built-in Over-Voltage Over-Current Over-Heat Protection
Features
1. Current range: 8 0 - 1 5 0 A @ 4 0 - 4 8 0 V A C
2. Peak voltage: 4 8 0 V A C
3. Inglass protection: IP20
4.Control mode: DC control
Application

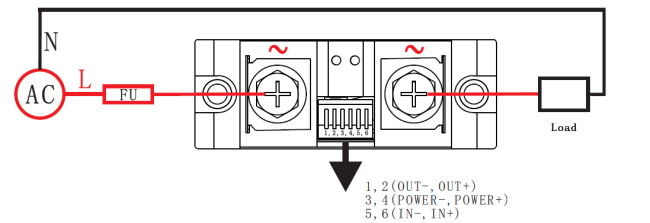

Diagram
Parameters
| Model | SAM4080D(OC) | SAM40100D(OC) | SAM40120D(OC) | SAM40150D(OC) | |||
| Output parameter | |||||||
| Chip current(A) | 100 | 120 | 140 | 160 | |||
| Load current(A) | 80 | 100 | 120 | 150 | |||
| Voltage range(Vrms) | 40---480VAC | ||||||
| Off-state leakage(mArms) | ＜5 | ||||||
| Off-state dv/dt(V/us) | ＞1000 | ||||||
| Period Surge current(Apk) | 810/895 | 1010/1120 | 1203/1280 | 1430/1550 | |||
| On-state voltage(Vrms) | ＜1.3 | ||||||
| Thermal resistance(°C/W) | 0.64 | 0.51 | 0.42 | 0.34 | |||
| Weight(g) | 181 | 186 | 195 | 210 | |||
| Non resistance load | 0.1--48A | 0.1--60A | 0.1--72A | 0.1--90A | |||
| Resistance load | 0.1--80A | 0.1--100A | 0.1--120A | 0.1--150A | |||
| Input parameter | |||||||
| Control voltage range | 4—32VDC | ||||||
| On voltage | 4VDC | ||||||
| Off voltage | 1VDC | ||||||
| Minimum input current(mA) | 7mA | ||||||
| Maximum input current(mA) | 12mA | ||||||
| Input impedence | ＞100kΩ | ||||||
| Time of opening(ms) | 1/2 cycle | ||||||
| Other parameter | |||||||
| Insulation voltage | 2500VAC 1min | ||||||
| Insulation resistance(500VDC) | 10MΩ | ||||||
| Maximum input/output capacity | 10pF | ||||||
| Work temperature | -40°C—80°C | ||||||
| Indication | LED indication | ||||||

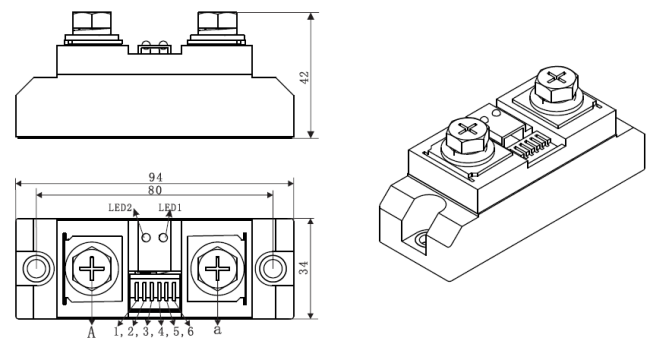

Dimension
