ASTM A822 Low Carbon Seamless Steel Pipe With Combination 0.27-0.63% Manganese
Product Name : ASTM A822 Carbon Steel Seamless Tubings are Low Carbon Steel Tubings with combination of 0.27-0.63 % manganese.
ASTM A822 Specification
ASTM A822 Carbon Steel Seamless Tubings are Low Carbon Steel Tubings with max 0.18 % carbon content with combination of 0.27-0.63 % manganese. These Tubings are also known as mild steel pipes and tubes.
ASTM A822 Tubings are low-cost Tubings easy to form and shape. These pipes are manufactured as per ASTM Specification and commercially referred as cs pipes or ms pipes. Low Carbon Steel Pipes are not as hard as hig carbon steel pipes,Though carburizing can increase its surface hardness.
ASTM A822 Properties
| Chemical Properties | |||||||||
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| max 0.18 | – | 0.27-0.63 | 0.048 | 0.058 | – | – | – | – | – |
| Mechanical Properties | |||||||||
| Yield Strength | Tensile Strength | Elongation A5 min | |||||||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | ||||
| 310 | – | 45 | 35 | ||||||
| Equivalent Designation | |||||
| DIN | EN | BS | NFA | ASTM | ASME |
| – | EN P195TR2 Grade 10216-1 | – | ASTM A822 | ASME SA 822 | |
Delivery Executions of ASTM A822 Carbon Steel Seamless Tubings
Mill test certificate
- MTC is issued in accordance with EN 10204.
Packaging

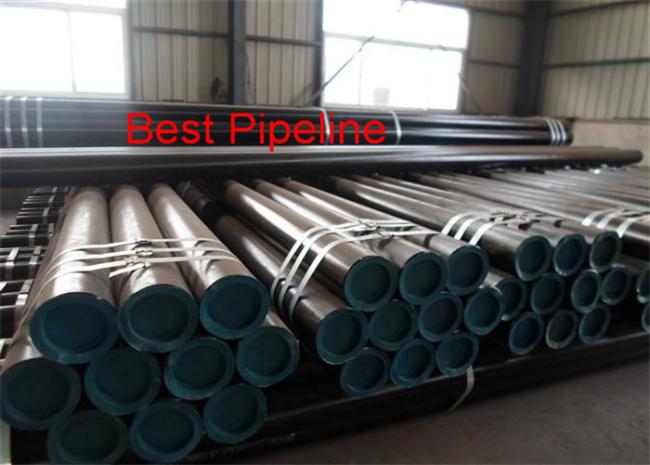

ASTM A822 Carbon Steel Seamless Tubings are bundled as standard, with steel straps into hexagonal bundles with one end flush.Length sorting can be carried out on request.
Tubes can also be bundled in multiples. Bundle weights are adjusted as requested by the customer. Each bundle contains tubes from a single cast/heat only.
Marking
ASTM A822 Carbon Steel Seamless Tubings is marked with tube type, heat number, steel grade and size.
Information is repeated along the whole length of the tube. Other markings, such as stamping, can be made on request. Bundles are also labeled with a tag having info both alphanumeric and by bar code.
Labelling
ASTM A822 Carbon Steel Seamless Tubings delivered direct from our mill is labeled in accordance with automotive standard, ie with both alphanumeric and bar code information.
Customer specific data can be added on request.
Best Pipeline is considered as the most Reliable ASTM A822 Tubings Supplier from China
