0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
Product Name : ASME SA 209 Grade T1a Alloy Steel Seamless Tubes are known as chrome moly Tubes
ASME SA 209 Grade T1a Specification
ASME SA 209 Grade T1a Alloy Steel Seamless Tubes are Carbon Steel Tubes with subsequent addition of chromium, molybdenum and sometimes vanadium are known as chrome moly Tubes. ASME Specification alloy steel Tubes are used for high temperature service applications. Seamless Alloy Steel Tubes according to ASME SA 209 Grade T1a are reheated and furnished in full annlealed,isothermal annealed or normalised quenched and tempered condition. ASME SA 209 Grade T1a Alloy Steel Seamless Tubes have a typical chemistry with additions of 0.44-0.65 Molybdenum. Bearing minimum tensile strength of 365 Mpa ASME SA 209 Grade T1a Tubes have a minimum yield strength of 195 Mpa.
ASME SA 209 Grade T1a Properties
| Chemical Properties | |||||||||
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| 0.15- 0.25 | 0.10-0.50 | 0.30-0.80 | 0.025 | 0.025 | 0.44-0.65 | – | – | – | – |
| Mechanical Properties | |||||||||
| Yield Strength | Tensile Strength | Elongation A5 min | |||||||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | ||||
|
|
365 | – | 53 | 30 | |||||
| Equivalent Designation | |||||
| DIN | EN | BS | NFA | ASTM | ASME |
| DIN 17175 Grade 16Mo5 | – | – – | ASTM A209 GradeT1a | ASME SA 209 Grade T1a | – |
2: Product Information
| Product name | seamless boiler steel pipe&tube |
| Standard | GB JIS ASTM AISI DIN ect |
| Material |
ASTM A 179 A53 A106,API5L Gr.B X60 X42,Q235B, Q345B, Q345C, 20#, 12Cr1MoV,15CrMo, TP304,316 310S.S235JR ect |
| Thickness | 1-100mm |
| Schedule |
SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40S,SCH40,STD,SCH80,SCHXS, SCH160,SCHXXS,ect |
| Outer diameter | 6-820 mm |
| Length | 5.8m 6m 12m or as customer demand |
| Used area |
Petroleum,chemical,power, gas, water, metallurgy, shipbuilding, construction , etc Or as customer demand |
| Package | In bundles, Varnish coating, Ends can be beveled or square cut, End capped |
| Certification | ISO9001.2000, , API, Mill Test Certificate |
| Thirdparty inspection | OMIC,SGS, or as customer demand |
| Remark | We can customer made for special requirement |
Delivery Executions of ASME SA 209 Grade T1a Alloy Steel Seamless Tubes
Tube Ends
Seamless tubes are supplied with clean, square cut ends.Deburring and/or chamfering can be carried out on request.
Marking
ASME SA 209 Grade T1a Alloy Steel Seamless Tubes is marked with tube type, heat number, steel grade and size. Information is repeated along the whole length of the tube. Other markings, such as stamping, can be made on request. Bundles are also labeled with a tag having info both alphanumeric and by bar code.
Labelling
ASME SA 209 Grade T1a Alloy Steel Seamless Tubes delivered direct from our mill is labeled in accordance with automotive standard, ie with both alphanumeric and bar code information. Customer specific data can be added on request.

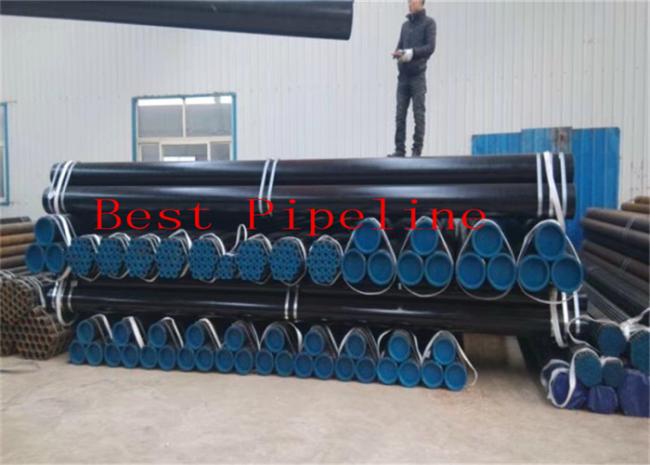

Pipe Pictures
