CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
1.WT≤15 mm, Bending≤1.5mm/m
WT>15~30 mm, Bending≤2.0mm/m
WT>30 mm, Bending≤3.0mm/m
2. End shape for the seamless high pressure boiler tube:
Both ends of the pipe should be cut at rightangles, and remove burrs
Tests of the seamless boiler tubes:
1.Bending Test:
The tubes should take the bending test when OD ≤22mm. Thebending angle is 90 degrees, and the bending radius is 6 times the outerdiameter of the steel tube.
2. Hydraulic test;
Eddy current testing, ultrasonic testing can beused instead of hydraulic tests. When eddy current testing, GB/T7735-1995 Gr. A should be followed; when ultrasonictesting, GB/T 5777-1996 Gr. C8 should be followed.
3. Flattening test
4. Flanging test
5. Expand test
| Item | Details |
| Product | ERW steel pipe(Electric Resistance welded pipe) |
| Standard and Grade |
API 5L GR.B, X 42, X 46, X 52, X 60 ASTM A 53 GR.A/GR.B ,ASTM A252 GR.1 / GR.2 / GR.3 BS1387, GOST10704 / GOST10705 |
| Out diameter | 1/2" to 24" (21.3mm to 609.6mm) |
| Wall thickness | Sch 10 TO Sch 40 (2mm to 20mm) |
| Length | SRL,DRL,5.8M,6M,12M |
| Certificates | API 5L,ISO,CE,PED,CPR,GOST, |
| Coating | Bare,oil,Black painting,Galvanized coating,3LPE,3PP,2PP |
| Pipe ends | Beveled ends,Plain ends,Grooved,welding ring |
| Packing | Bundles,Woven bags packing,losse packing, |
| Delivery time | 7-30 days |
| Application |
Water oil and gas low pressure fluid pipeline Petroleum and chemical industry pipe Structure Electric power engineering High pressure boiler pipe Piling pipe |
| Supply |
ERW steel pipe Seamless steel pipe LSAW steel pipe SSAW steel pipe Galvanized steel pipe 5CT casing tube |
| Payment term | T/T,L/C,BL COPY etc |
| Chemical Composition | |||||
| Material | C% | Mn% | S% | P% | Si% |
| Q195 | 0.06-0.12 | 0.25-0.50 | <0.050 | <0.045 | <0.30 |
| Q215 | 0.09-0.15 | 0.25-0.55 | <0.050 | <0.045 | <0.30 |
| Q235 | 0.12-0.20 | 0.30-0.70 | <0.045 | <0.045 | <0.30 |
| Q345 | <0.20 | 1.0-1.6 | <0.040 | <0.040 | <0.55 |
| Mechanical Property | |||||
| Material | Yield Point(Mpa) | Tensile Strength(Mpa) | Elongation(%) | ||
| Q195 | >195 | 315-430 | 32-33 | ||
| Q215 | >215 | 335-450 | 26-31 | ||
| Q235 | >235 | 375-500 | 24-26 | ||
| Q345 | >345 | 470-630 | |||

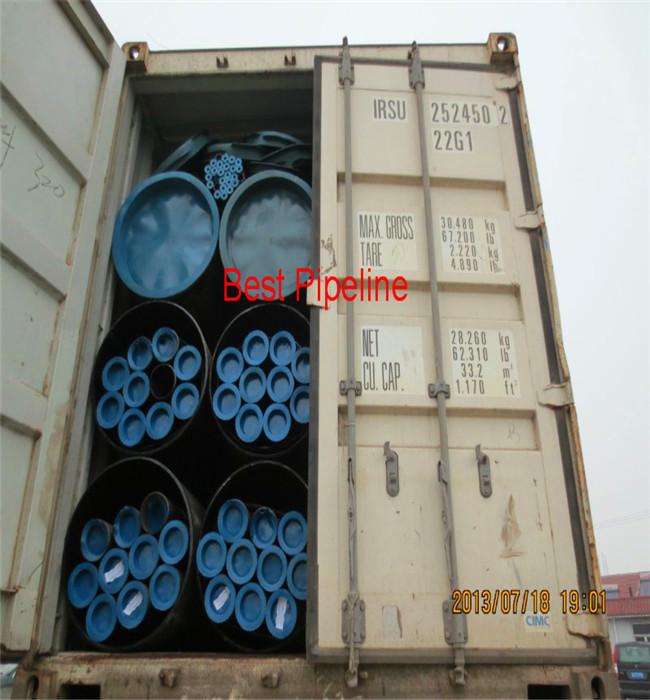

Steel Pipe Pictures
