Copper Nickel Alloy Stainless Steel Fittings SC71500 Stainless Steel Pipe Joints
Product Name : Cu-Ni 70/30 C71500 Lap Joint (Stub End) (Sch40, Sch80, Sch120, Sch160) Wrought Carbon Steel Butt Weld Pipe Fittings
Specifications governing the properties of weld fittings are:
- Physical and Chemical: ASTM A/SA234-WPB and WPB-X produced from plate fittings up to 24″ considered to be seamless. Fittings 26″ and higher are generally constructed from plate and welded such as ASTM A-516.
- Dimensional: ANSI B16.9, B16.11, B16.25, B16.28, and MSS SP-25, MSS SP-48 and MSS SP-75 (for higher yield fittings), WPH-Y42 through WPH-Y70+
- A420-WPL6, & A860 304(L), 316(L) and other alloys are available by special order
1.Product information of steel elbow
| Material | 04/304L, 316/316L, 317L, 321, 310S, S31803 |
| Wall Thickness | SCH10, SCH20, SCH40, SCH80, SCH120, SCH160, STD, XS, XXS |
| Size Range | 1/2" to 48 " (DN15--DN1200) |
| Standard | ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313 |
| Surface Treatment | Black paint, Antirust oli, Primary Color |
| Packaging |
Plywood cases or pallets or according to the requirements of the Customers |
| Applications Range |
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc. |
| Special Design | Available |
| Customized Size | Available |
2:Butt Welding Fittings in the following forms
Elbows 45o and 90o – long radius is standard; short radius is also available
Return bends 180o – long radius is standard; short radius is also available
Reducers – concentric and eccentric
Tees – equal and reducing
Caps
Stub ends – Type B, to MSS SP-43
Butt welding fittings can be supplied in either seamless or welded construction and are covered by
specification ASTM A403M (or ASTM A815M for Duplex grades) and ASME B16.

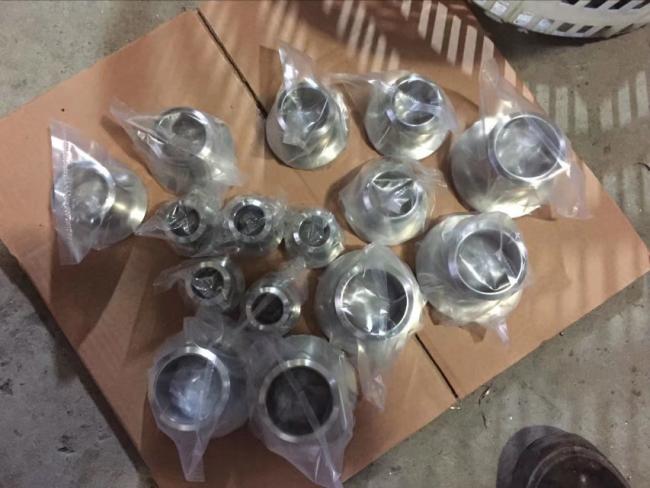

3:Product Show
