317L Low Carbon Stainless Steel Square Tubing SS DIN 1.4438 Specification
Product Name :ASTM A312 / A213 SS Stainless Steel 317L Pipes and Tubes Specification : SS DIN 1.4438
What is 317L ?
Stainless Steel 317L Welded Pipes is a molybdenum bearing, low carbon content “L” grade austenitic stainless steel that provides improved corrosion resistance over 304L and 316L stainless steels. In addition, SS 317L Welded Tubes offers higher creep, stress-to-rupture, and tensile strength at elevated temperatures than conventional stainless steels. The increased levels of chromium, nickel and molybdenum content in SS 317L EFW Pipes over SS 316L improve chloride pitting resistance and general corrosion. SS 317L ERW Pipes provides good oxidation resistance in intermittent service to 1600 Degree F and in continuous service to 1700 Degree F. Buy Grade 317L Stainless Steel Pipes at reasonable cost from us.
| Specifications | : | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| ERW 317L Pipes & Tubes | : | 1/2″ NB – 24″ NB |
| EFW 317L Pipes & Tubes | : | 6″ NB – 100″ NB |
| 317L Pipes & Tubes | : | 1/2″ NB – 16″ NB |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Specialized in | : | Large Diameter Size |
| Length | : | Single Random, Double Random & Cut Length. |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| End | : | Plain End, Beveled End, Treaded |
Stainlesss Steel 317L Pipes & Tubes Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 317L | 1.4438 | S31703 | – | – | – | – | – |
TP 317L Stainless Steel Pipes & Tubes Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
Physical properties :
| Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Electrical Resistivity mW-in | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | ||
| at 68 °F | at 77 – 212°F | at 77 – 932°F | at 77 – 1832°F | at 68 – 1832°F | at 32 – 212°F | |
| 0.29 | 9.2 | 10.1 | 10.8 | 31.1 | 14.6 | 0.11 |
ASTM A312 / A213 SS TP 317L Pipes & Tubing Mechanical properties:
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Types Of Stainless Steel 317L Pipes Tubes
| Stainless Steel 317L Pipes | Stainless Steel 317L Tubes |
| Stainless Steel 317L pipes | Stainless Steel 317L tubes |
| AISI 317L seamless pipes | ASTM A269 TP 317L stainless steel seamless tubes |
| UNS S31703 Pipes in Iraq | AISI 317L seamless Tubing in Iran |
| AISI 317L welded pipes in Egypt | ASTM A213 TP 317L stainless steel seamless tubes |
| SUS 317L Pipes Suppliers in Jordan | AISI 317L welded tubes |
| DIN 1.4438 pipes in Peru | AISI 317L ERW Tubing in Dealer Singapore |
| SS 317L pipes in Chile | SS 317L tubes Exporter in Bahrain |
| AISI 317L ERW pipes in Malaysia | ASTM A249 TP 317L stainless steel welded tubes |

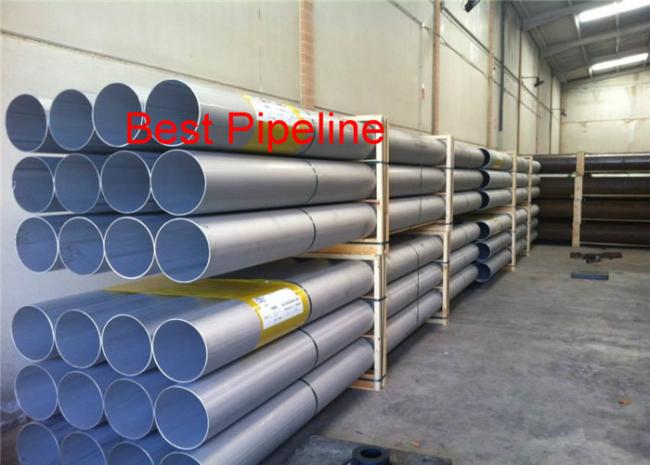

Stainlesss Steel 317L Pipes & Tube Pictures :
