10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
Product Name : Standard : EN 10217-7 TC1 D3/T3 Welded stainless steel tube Material : 1.4301 /304/316L /304L
What is 1.4301?
| Material No. | 1.4301 |
|---|---|
| EN symbol (short) | X5CrNi18-10 |
| AISI/SAE | 304 |
| UNS | S 30400 |
| AFNOR | Z7CN 18-09 |
| B.S. | 304 S15 – 304 S31 |
| alloy | — |
| Registered work's label | — |
| Standards | EN 10088-3 |
Description
The stainless austenitic chromium-nickel steel 1.4301 shows good corrosion resistance (particularly in natural environmental media and in the absence of considerable chlorine and salt concentrations and sea water) and weldability. Application with acids have to be checked individually. However, after welding 1.4301 is not stable to intergranular corrosion. Good polishing and deep drawing property. It is used in the crude oil industry, chemical industry, petrochemical industry, automobile industry.
Our product range in 1.4301 are tubes and pipes, fittings and flanges, accessories
Chemical composition |
||||||||
| C ≤ % |
Si ≤ % |
Mn ≤ % |
P ≤ % |
S ≤ % |
Cr % |
Mo % |
Ni % |
V % |
| 0,07 | 1,0 | 2,0 | 0,045 | 0,015 | 17,0-19,5 | 8,0-10,5 | ||
| Nb % |
Ti | Al | Co ≤ % |
Cu ≤ % |
N ≤ % |
Fe | Ce % |
Y ≤ % |
| 0,11 | ||||||||
| ¹ in accordance with Key to Steel 2001 | ||||||||
Special characteristics |
||
| Temperature range | Density kg/dm³ | Hardness (HB) |
|---|---|---|
| Due to an inclination to precipitate chromium carbides, application temperatures of 450°C-850°C have to be tested carefully (DIN EN 10088-3) | 7,9 | 160-190 |
Welding filler |
| 1.4316 (308L), 1.4302, 1.4551 |
Main fields of application (depending on the specific conditions of use) |
| crude oil industry, chemical industry, petrochemical industry, construction industry, food industry |
| (all aforementioned specifications serve as a general orientation and have to be reviewed depending on the specific conditions of use) |

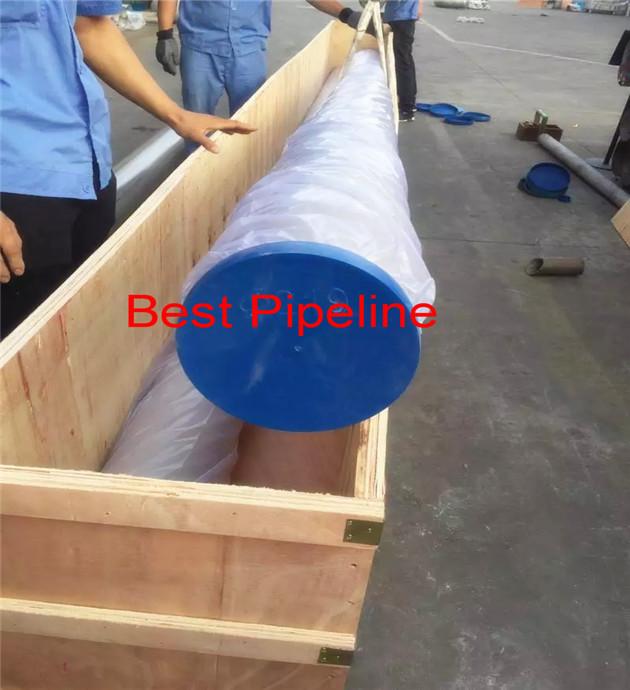

Welded stainless steel tube 304 Pipe pictures :
