Hot Rolled Seamless Alloy Steel Tube T/P22 T/P23 T/P24 7CrMoVTiB10-10 ASTM Standard
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
What is the Alloy steel pipe T/P22 , T/P23 , T/P24 (7CrMoVTiB10-10)
What is T/P22 (10CrMo9-10) Chemical composition, T/P23 (7CrWVNb9-6) Chemical composition, T/P24 (7CrMoVTiB10-10)Chemical composition
| T/P22 (10CrMo9-10) Chemical composition | T/P23 (7CrWVNb9-6) Chemical composition | T/P24 (7CrMoVTiB10-10)Chemical composition | |
| C | 0.08 - 0.14 | 0.04 - 0.10 | 0.05 - 0.10 |
| Si | max. 0.50 | max. 0.50 | 0.15 - 0.45 |
| Mn | 0.30 - 0.70 | 0.10 - 0.60 | 0.30 - 0.70 |
| P | max. 0.025 | max. 0.030 | max. 0.020 |
| S | max. 0.20 | max. 0.010 | max. 0.010 |
| Ni | --- | ---- | --- |
| Cr | 2.00 - 2.50 | 1.90 - 2.60 | 2.20 - 2.60 |
| Mo | 0.90 - 1.10 | 0.05 - 0.30 | 0.90 - 1.10 |
| W | --- | 1.45 - 1.75 | --- |
| Ti | --- | ---- | 0.05 - 0.10 |
| v | --- | 0.20 - 0.30 | 0.20 - 0.30 |
| Nb | ---- | 0.02 - 0.08 | --- |
| Al | max. 0.040 | max. 0.030 | max. 0.020 |
| N | --- | max. 0.030 | max. 0.010 |
| B | --- | 0.0005 - 0.0060 | 0.0015 - 0.0070 |
T/P22 , T/P23 , T/P24 New low-alloy steels for boiler tubes/water wall panels and thick-walled piping system components

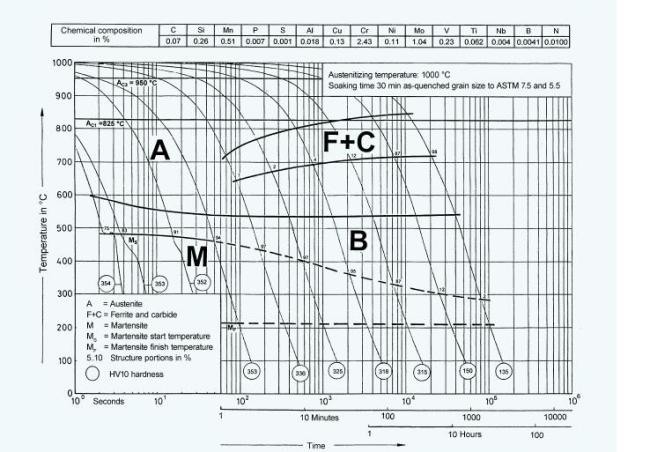

T/P22 , T/P23 , T/P24 Metallurgical principles and material properties
| Steel grade | YS (MPa) | TS (MPa) | A5 (%) |
| T/P22 material properties | min. 280 | 480 - 630 | min. 20 |
| T/P23 material properties | min. 400 | min. 510 | min. 20 |
| T/P24 material properties | min. 450 | 585 - 840 | min. 17 |
| T/P91 material properties | min. 450 | 620 - 850 | min. 17 |
