ON/OFF Intelligent Smart Glass with Liquid Crystal Privacy Glass
ON/OFF Intelligent Smart Glass with Liquid Crystal Privacy Glass
Intelligent Smart Glass

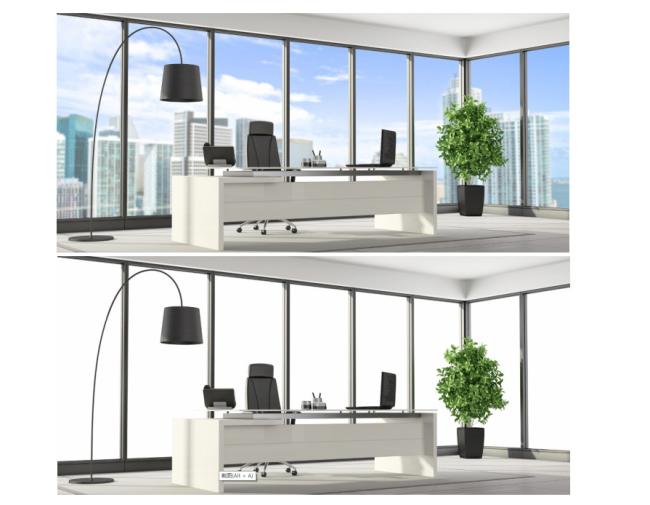

Intelligent Smart Glass is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive interlayers. The PDLC film is what allows you to change the visual appearance of the glass from opaque to clear on command (or dim anywhere in between). The UL approved technology provides unprecedented control over the amount of light, privacy and heat that enters a space and is ideal for Residential, Commercial Interior, Retail Store Front, Healthcare and Automotive applications.
Liquid Crystal Privacy Glass Datasheet
| Product Name | Intelligent Smart Glass with Liquid Crystal Privacy Glass |
| Raw Material Glass | Clear Glass, Ultra Clear Glass |
| Thickness | 5+5mm / 6+6mm |
| Color | Clear, Milky, Grey, Blue, Green, Red, Black |
| Common Width |
Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) Self-Adhesive PDLC Film-- 1.0, 1.2, 1.5meters (Max 1.5meters) |
| PDLC Film Length | 30 or 50 meters/roll or per request |
| Response Time |
From OFF to ON: <=50ms From ON to OFF: <=200ms |
| Power consumption | 5W/sq.meter |
| Operating Temperature | -20 ℃ and 70 ℃ |
| Life Time | >=50,000hours |
| Transformer | AC 60V (Suggest to use nominated transformer) |
| Silicon Glue | Neutral (Suggest to use nominated silicon glue to prevent glass corrison) |
What are the Advantages of using Switchable Glass (Privacy Glass)?
- Instant privacy at the flick of a switch
- Highest transparency available in the market
- Lowest angle haze available
- Blocks 99.9% of the harmful UV rays
- Very low operation and maintenance costs
- Maximum use of space
- Wide variety of Shapes
- Capable to be incorporated with other products to serve all required performance levels
- Acoustic and Sound barrier
- Can be produced as Double or Triple glazed units to achieve improved Heat and solar protections levels
- Dimming possibility from the transparent state to the opaque state (compared to only On/Off switch)
- Unparalleled after sales service
