GL2×35 Transmission Line Equipment Hydraulic Tensioner 77KW Diesel 24V Electric System

GL2×35 Hydraulic Tensioner For Transmission Line Equipment Maximum Intermittent Tension 2×40/1×80KN

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm²and below in flat lands, and of single conductor 720mm²in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kv traction stringing in various terrains.

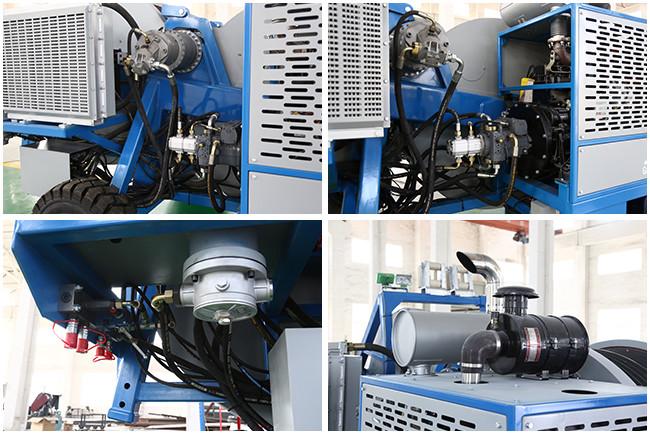

Configuration

1.  Hydraulic dynamometers
2.  Hydraulic oil cooling system
3.  Digital speed and meter counter
4.  Grounding connection point

Hydraulic Transmission

1.  The machine can realize step less speed
2.  The machine is provided with tension presetting system

Additional Devices

1.  Lighting system for trailer
2.  Air brakes system for the trailer (extra charge)
3.  2 hydraulic conductor clamps for drum change operations (extra charge)
4.  Swivel guide rope roller

Engine

1.  Diesel: 77 kw(103hp)
2.  Cooling system: water
3.  Electric system: 24V

Structure parameter

1.  Bottom diameter of tension wheel groove: 1300mm
2.  Trial traverse diameter: 40mm
3.  Total weight:4500kg
4.  Boundary dimension:4300×2250×2700mm

Main configuration instructions

1.  Engine: imported
2.  Reduction gear: German Rexroth
3.  Main motor: German Rexroth

Performance parameter
