Cover Joints Conductor Protect Transmission Line Accessories 240-1000mm2 Conductor
Cover Joints Conductor Protect Transmission Line Accessories Stringing Tools
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Cover Joints
3. Conductor: 240~1000mm2
4. Galvanized Steel with Rubber Made
5. Galaxy Brand
Description:

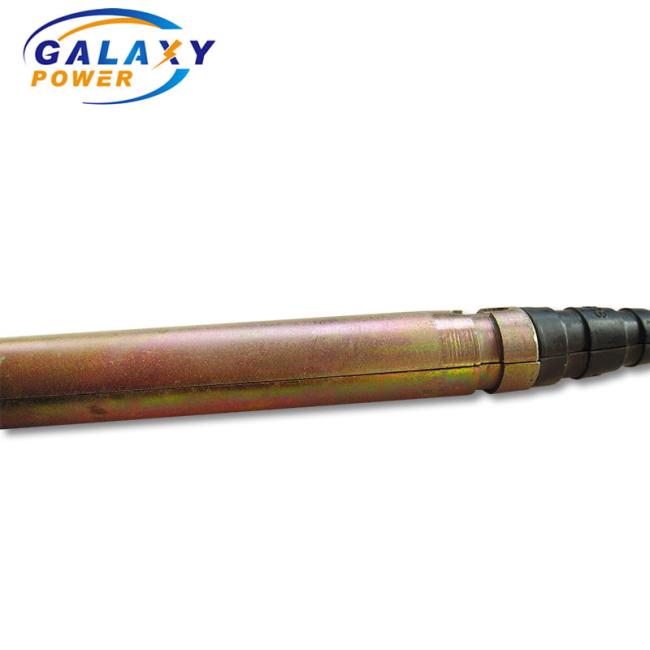

The cover joints are specifically designed to protect the mid span joint, made at the "tensioner station", during conductor stringing operations. The cover joints consist of two shells made of galvanized steel with shaped ends to house the rubber noses which protect the mid span joint during the passage over the pulleys. The shells are coupled together by socket screws and the rubber noses are clipped together by belts.
Specification:
| Model | Dimensions (mm) | Conductor | |||
| D | L | d | L1 | (mm2) | |
| J240 | 45 | 850 | 38 | 530 | 240 |
| J300 | 51 | 940 | 43 | 600 | 300 |
| J400 | 57 | 985 | 47 | 655 | 400 |
| J500 | 68 | 1080 | 56 | 740 | 500 |
| J630 | 83 | 1180 | 63 | 800 | 630 |
| J720 | 83 | 1196 | 63 | 816 | 720 |
| J900 | 89 | 1180 | 73 | 800 | 900 |
| J1000 | 95 | 1400 | 75 | 1020 | 1000 |
Transmission Line Accessories:
COMPANY PROFLIE:
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American imported Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
