High Power Industrial Magnetron Tube 50kW 915MHz Microwave Plasma CVD
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
one month
Brand:
GUOGUANG
Product Description
GCWM-9050 50kW/915MHz CW Magnetron
The GGCK-50 Continuous wave magnetron is a 33cm, fixed-frequency, full-metal-ceramic structure, and direct thermal pure tungsten cathode, high-power microwave tubes. Electromagnet attached to the magnetic field from the outside to offer water-cooled tube, the cathode leads to air-cooled, microwave energy from the axial antenna output, can directly stimulate a rectangular waveguide acting as the microwave power source used for heating.
| Main Parameter |
| Filament Voltage: …………………………………………10.0V |
| Filament Current:………………………………………… 94.5A |
| Anode Voltage:……………………………………………14.5kV |
| Anode Current:………………………………………………4A |
| Electromagnet Current:…………………………………… 3.95A |
| Output Power:………………………………………………50kW |
| Efficiency:…………………………………………………… 87% |

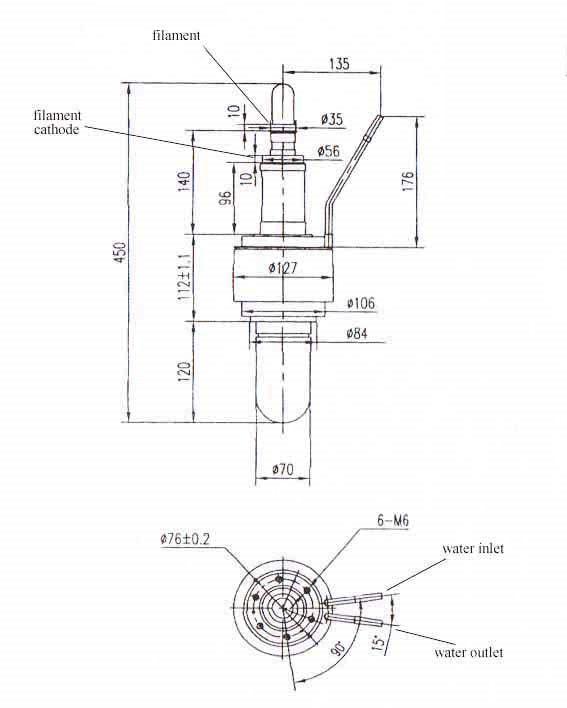

GCWM-9050 50kW-915MHz CW Magnetron size
