Purge Air Treatment Equipment / Indoor Heated Air Line Desiccant Dryer

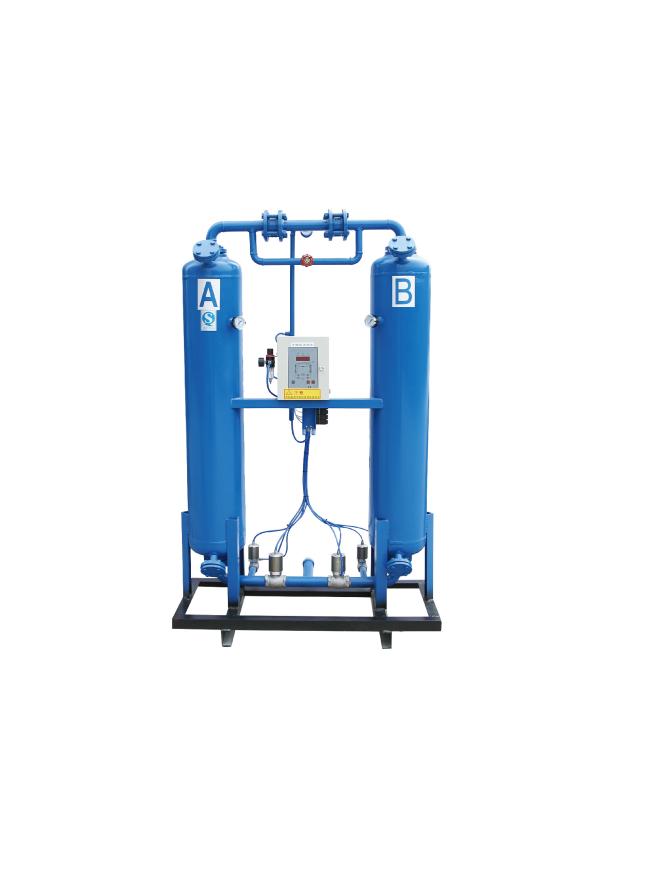

Externally Heated Purge Desiccant Air Dryer -40--70℃ zero air consumption
Dew point: -40 °C - -70°C
ISO, CE certificated With world-top activated Aluminum & Molecular contents.
Features of Externally Heated Purge Desiccant Air Dryer :
Externally heated Purge Desiccant Air Dryer is a new economic product developed by our company; This series product integrating advantages of heat-exists purge and heatless purge, externally heating the purge air, reduce it's consumption.
It efficiently avoid the disadvantages of short switching time and consuming most of the purge air of the desiccant air dryer, and wasting electricity of heat-exists air dryer.
This product has got rationally switch time, little purge air consumption, also being the most economical Desiccant Dryer in this line and widely used in metallurgy, electrical, electron, foodstuff, chemical industry, petroleum, medicine, light industry, cigarette, apparatus, auto industry and so on.
Adsorption Element
Externally Heated Desiccant Air Dryer is integrated the advantages of PSA(Pressure Swing Adsorption) & TSA(Temperature Swing Adsorption).Absorbing during normal temperature and dense water vapour; purging during relatively high temperature and less density of water vapour. That’s to say, absorb water of sorbet, purify during the purging period by superior purge air of thermal diffusion and high pressure difference.
The Flow Chart of Externally Heated Purge Desiccant
Heatless Purge Desiccant Air Dryer using micro holes in the desiccant itself, adsorbing the moisture in the air because of capillary, desorbing it by pressure drop and adsorbing extra-heat. Currently, the equipment is making up of two towers, controlled by the Program Controller, the two towers working alternately, one is for adsorbing, the other is for desorbing, in this way continually circulating the work.
Working Condition Technical Data
-
Inlet temperature:0~45℃
-
Inlet oil content: ≤0.01mg/m3
-
Working pressure: 0.6~1.0MPa
-
Dew point:-20~-70℃
-
Purge air: ≤12%~15%
-
Desiccant:activated alumina & molecular sieve
-
Purge mode: heatless purge
-
Working method:continuing alternative working between two towers
-
Working periods:T=4~20min
-
Control mode:micron computer auto controlling
-
Installation mode: indoor, non-basement
| Model | Cpacity m3/min |
Power Kw | Voltage V/50Hz |
connection | Dimension L×W×H |
Weight Kg |
| HDR-30XF | 5.5 | 1.05 | 380 | G1.5 | 1000×450×1890 | 300 |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
| 3. 1 year warranty |
