Low Noise GM4632-370CH 24V 32mm 40RPM 75mA Worm Gear Motor
32mm Metal 12V DC Worm Gear motor Large Torque Low Noise and Low Power Consumption
- DC Worm Gear-Box Motor
- Diameter : Φ32.0mm
- Output : APPROX 0.1~5.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Electric curtain Office Automatic Equipments Printer/paper Feeder Bank Equipments Safe Box Ad Equipment Analysis Instrument/electronic Game Machine Household Appliances Electronic Door Lock

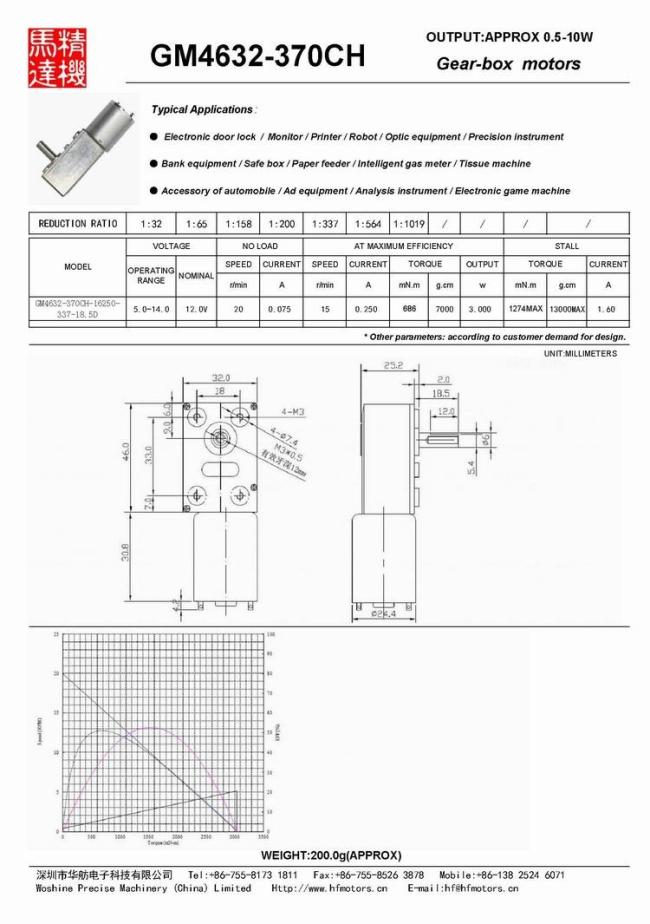

Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| REDUCTION RATIO | 1:32 | 1:65 | 1:158 | 1:200 | 1:337 | 1:564 | 1:1019 | / | / | / | / | ||
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM4632-370CH-16250-337-18.5D | 5.0-14.0 | 12.0V | 20 | 0.075 | 15 | 0.250 | 686 | 7000 | 3.000 | 1274MAX | 13000MAX | 1.60 | |

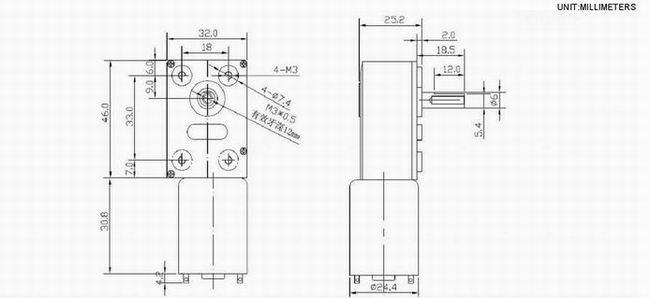

Drawing
Product Details Show

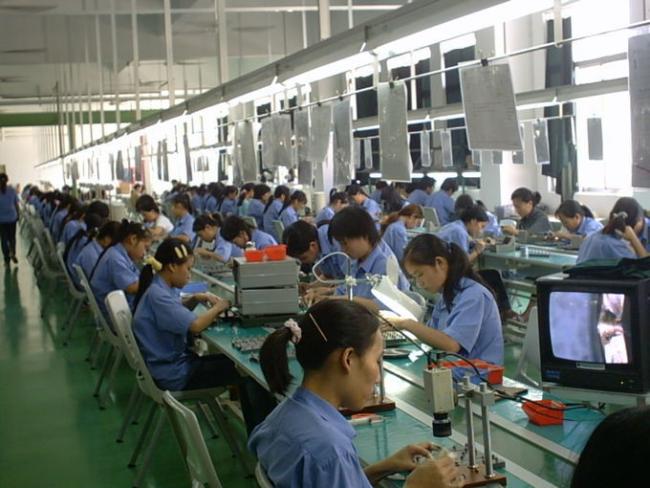

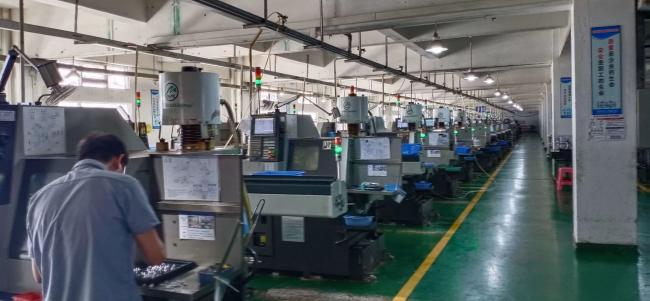

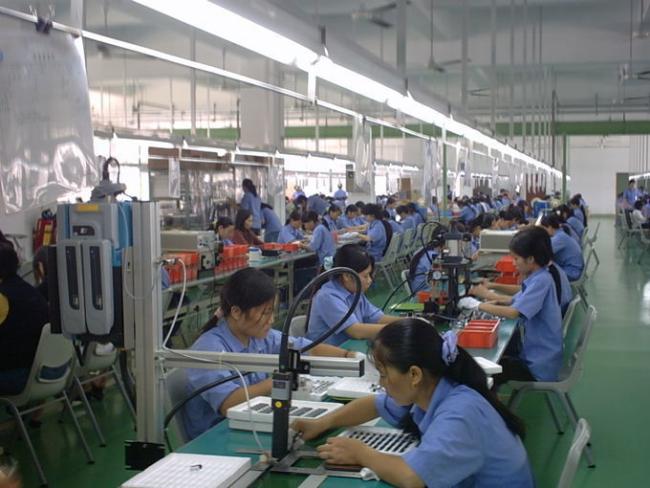

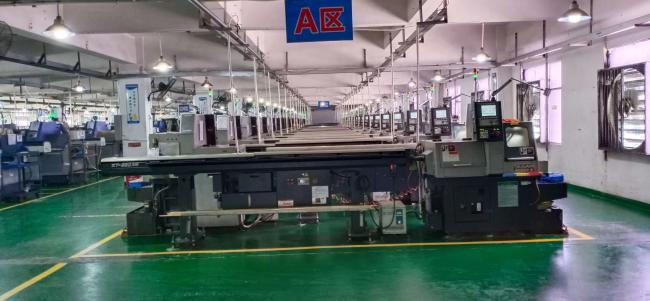

Production workshop

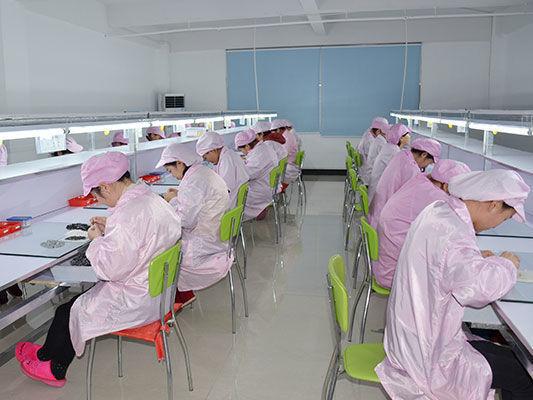

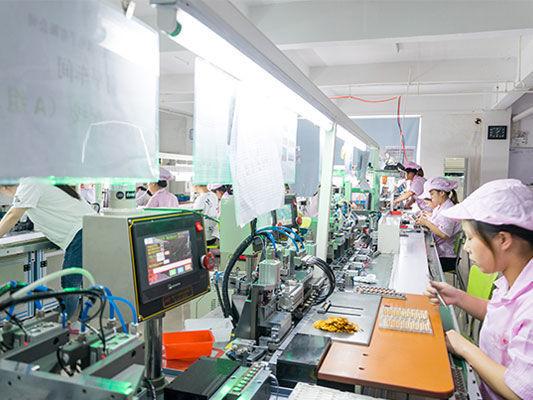

Dust-free Production workshop

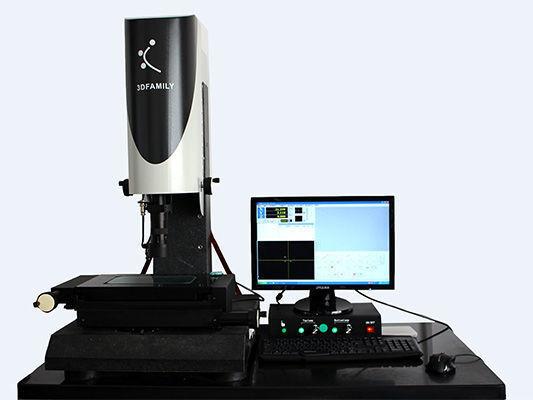

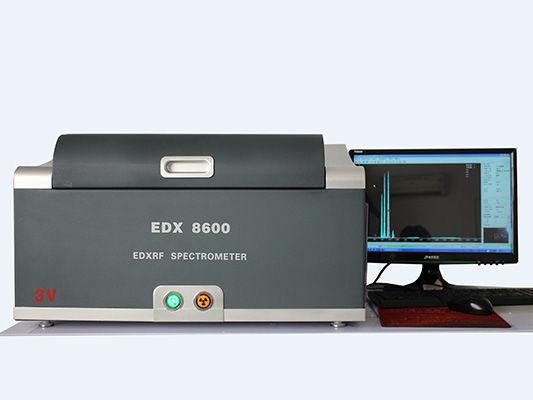

Test Equipment
Commonly used torque unit conversion table
| N.M | mN.m | g.cm | kg.cm |
| 1 | 1000 | 10200 | 10.2 |
| 0.001 | 1 | 10.2 | 0.0102 |
For more information, please contact us directly or through our sales and representative offices.
Quality Cotrol Test
Reliability Test & Laboratory
Noise Test
Water-proof Test
Life Test
Impact Test
Storage Test
Salt Spray Test
Environmental Related Substance
Typical Applications
-
Household application
electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
- Toys and models
-
radio control model, automatic cruise control, ride-on toy and etc.
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
