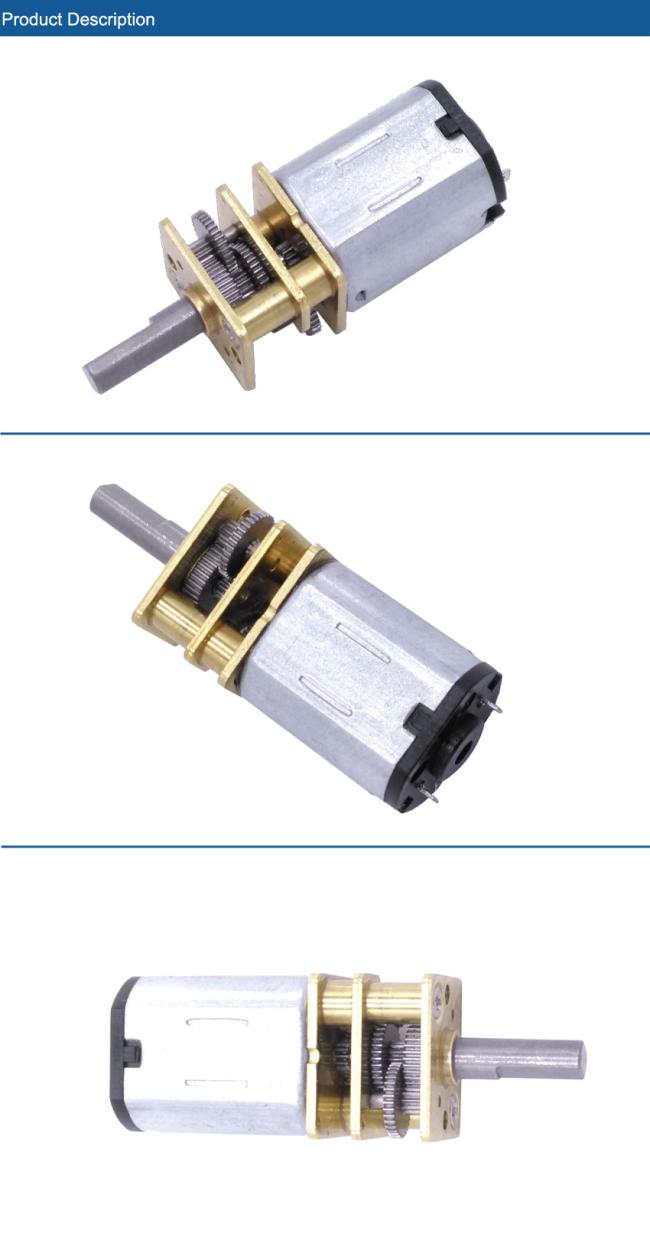

Hofon 12 volt double shaft vacuum brushed reductor motor 12v dc micro gear motor with gearbox
Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine
Customized Service:
Voltage, speed, torque and other performance parameters can be customized according to requirements.
Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.
Representative Performance:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| 1# GM12F-N20VA-06360-30 | 3.0-7.0 | 5.0V | 265 | 0.015 | 193 | 0.050 | 6 | 60 | 0.250 | 19.0 | 190 | 0.15 | |
| 2# GM12F-N20VA-06360-50 | 3.0-7.0 | 5.0V | 160 | 0.015 | 116 | 0.050 | 10 | 100 | 0.250 | 31.5 | 315 | 0.15 | |
| 3# GM12F-N20VA-06360-100 | 3.0-7.0 | 5.0V | 80 | 0.015 | 58 | 0.050 | 20 | 200 | 0.250 | 63.0 | 630 | 0.15 | |
| 4# GM12F-N20VA-06360-150 | 3.0-7.0 | 5.0V | 53 | 0.015 | 38 | 0.050 | 30 | 300 | 0.250 | 94.0 | 940 | 0.15 | |
| 5# GM12F-N20VA-06360-210 | 3.0-7.0 | 5.0V | 38 | 0.015 | 27 | 0.050 | 42 | 420 | 0.250 | 130.0 | 1300 | 0.15 | |
| 6# GM12F-N20VA-06360-250 | 3.0-7.0 | 5.0V | 32 | 0.015 | 23 | 0.050 | 50 | 500 | 0.250 | ≥150 | ≥1500 | 0.15 | |
| 7# GM12F-N20VA-06360-298 | 3.0-7.0 | 5.0V | 26 | 0.015 | 19 | 0.050 | 59.6 | 596 | 0.250 | ≥150 | ≥1500 | 0.15 | |
| 8# GM12F-N20VA-06360-380 | 3.0-7.0 | 5.0V | 21 | 0.015 | 15 | 0.050 | 59.6 | 760 | 0.250 | ≥150 | ≥1500 | 0.15 | |
| 9# GM12F-N20VA-06360-1000 | 3.0-7.0 | 5.0V | 8 | 0.015 | 6 | 0.050 | 59.6 | 1000 | 0.250 | ≥150 | ≥1500 | 0.15 | |
| 10# GM12F-N20VA-06360-30 | 6.0-14.0 | 12.0V | 640 | 0.030 | 465 | 0.100 | 14 | 144 | 1.200 | 50.0 | 500 | 0.36 | |
| 11# GM12F-N20VA-06360-50 | 6.0-14.0 | 12.0V | 384 | 0.030 | 280 | 0.100 | 24 | 240 | 1.200 | 85.0 | 850 | 0.36 | |
| 12# GM12F-N20VA-06360-100 | 6.0-14.0 | 12.0V | 192 | 0.030 | 140 | 0.100 | 48 | 480 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 13# GM12F-N20VA-06360-150 | 6.0-14.0 | 12.0V | 128 | 0.030 | 93 | 0.100 | 72 | 720 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 14# GM12F-N20VA-06360-210 | 6.0-14.0 | 12.0V | 90 | 0.030 | 65 | 0.100 | 100 | 1000 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 15# GM12F-N20VA-06360-250 | 6.0-14.0 | 12.0V | 76 | 0.030 | 56 | 0.100 | 120 | 1200 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 16# GM12F-N20VA-06360-298 | 6.0-14.0 | 12.0V | 64 | 0.030 | 46 | 0.100 | 143 | 1430 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 17# GM12F-N20VA-06360-380 | 6.0-14.0 | 12.0V | 50 | 0.030 | 36 | 0.100 | 180 | 1824 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 18# GM12F-N20VA-06360-1000 | 6.0-14.0 | 12.0V | 19 | 0.030 | 14 | 0.100 | 480 | 4800 | 1.200 | ≥150 | ≥1500 | 0.36 | |
| 19# GM12F-N20VA-08230-30 | 6.0-14.0 | 12.0V | 1020 | 0.040 | 840 | 0.120 | 24 | 240 | 1.440 | 94.0 | 945 | 1.00 | |
| 20# GM12F-N20VA-08230-50 | 6.0-14.0 | 12.0V | 615 | 0.040 | 500 | 0.120 | 40 | 400 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 21# GM12F-N20VA-08230-100 | 6.0-14.0 | 12.0V | 300 | 0.040 | 252 | 0.120 | 80 | 800 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 22# GM12F-N20VA-08230-150 | 6.0-14.0 | 12.0V | 200 | 0.040 | 168 | 0.120 | 120 | 1200 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 23# GM12F-N20VA-08230-210 | 6.0-14.0 | 12.0V | 140 | 0.040 | 120 | 0.120 | 168 | 1680 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 24# GM12F-N20VA-08230-250 | 6.0-14.0 | 12.0V | 120 | 0.040 | 100 | 0.120 | 200 | 2000 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 25# GM12F-N20VA-08230-298 | 6.0-14.0 | 12.0V | 100 | 0.040 | 80 | 0.120 | 238 | 2384 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 26# GM12F-N20VA-08230-380 | 6.0-14.0 | 12.0V | 78 | 0.040 | 62 | 0.120 | 300 | 3040 | 1.440 | ≥150 | ≥1500 | 1.00 | |
| 27# GM12F-N20VA-08230-1000 | 6.0-14.0 | 12.0V | 30 | 0.040 | 23 | 0.120 | 800 | 8000 | 1.440 | ≥150 | ≥1500 | 1.00 |
|
| Reduction Ratio | 1 : 3 | 1 : 5 | 1 : 10 | 1 : 30 | 1 : 50 | 1 : 63 | 1 : 100 | 1 : 150 | 1 : 210 | 1 : 250 | 1 : 298 | 1 : 1000 | |
Company Profile
Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.
We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.
Competitive Advantage
- 20 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 15 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
Certifications
Exhibition
