D3.3m*L4.5m Pneumatic Fender Yokohama Fender Marine Boat Fenders Made in China
D3.3m*L4.5m Pneumatic Fender Yokohama Fender Marine Boat Fenders Made in China
Pneumatic rubber fender introduction
Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
Pneumatic rubber fender Parameter
| Ship Tonnage(T) | Recommendation Size D x L ( m) | Ship Type |
| 50 | 0.5 x1.0 | Fishing ship |
| 100 | 0.7 x 1.5~1.0 x 1.5 | Fishing ship |
| 200 | 1.0 x 1.5~1.2 x 2.0 | Fishing ship, towing ship |
| 300-500 | 1.2 x 2.0~1.5 x 2.5 | Fishing ship, towing ship |
| 1000 | 1.5 x 2.5~1.5 x 3.0 | Towing ship, cargo ship |
| 3000 | 2.0 x 3.0~2.0 x 3.5 | cargo ship, ocean trawler |
| 10000 | 2.0 x 3.5~2.5 x 4.0 | cargo ship |
| For Small & Middle Size Ship | ||
Pneumatic Rubber Fender Features
Comparison of Henger Pneumatic Rubber Fender and traditional elastic rubber fender:
1. High impact energy absorption, low impact force on the ship
2. Simple installation
3. Good elasticity, no deformation under the action of compression
4. Lightweight, practical and economica
Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Pneumatic Rubber Fender Application
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

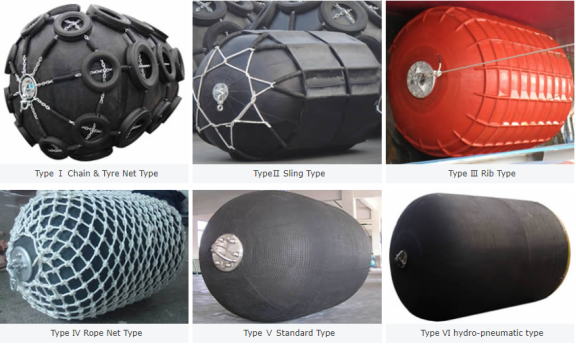

Pneumatic Rubber Fender Types

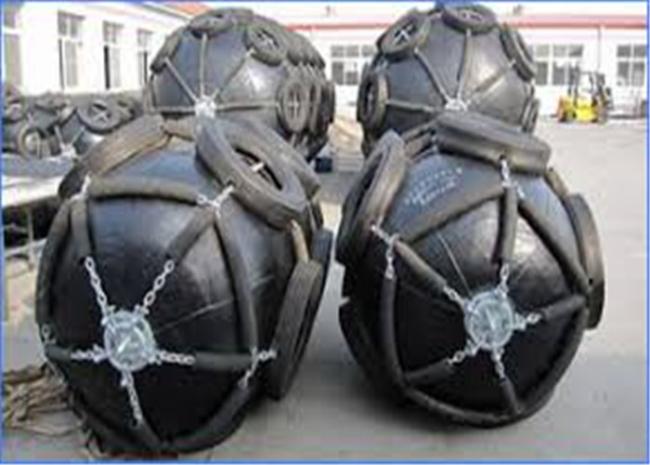

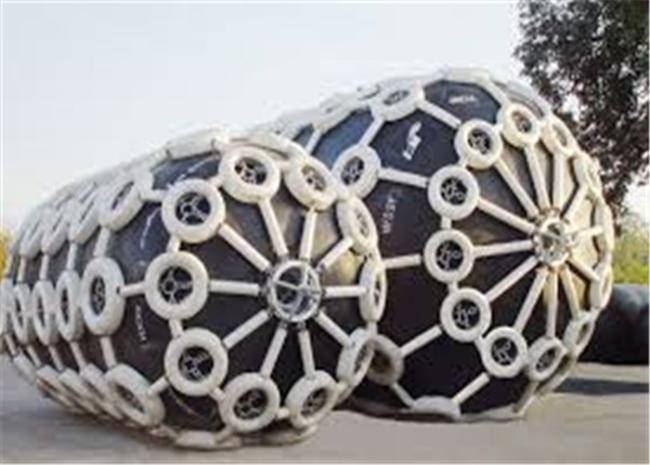

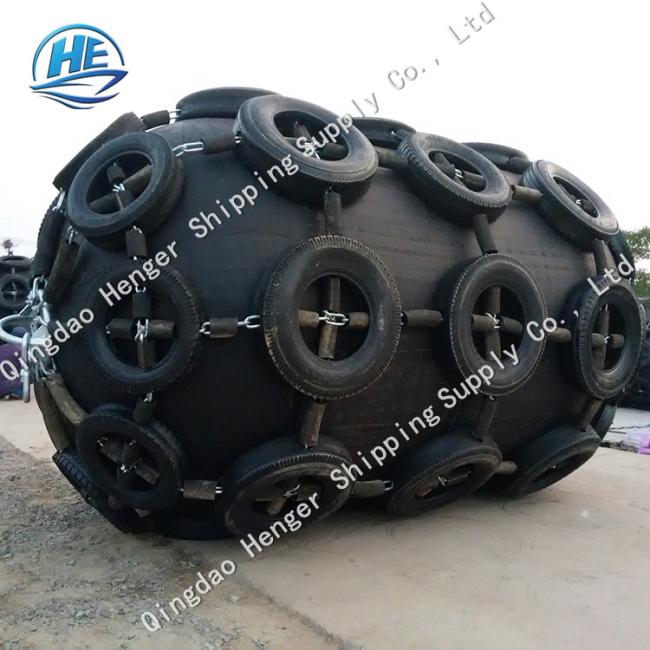

Type I: pneumatic rubber fender with Chain & tyre net protective jacket
Type II: Sling type with rubber plate, rubber tube & ropes protective jacket
Type III: Ribbed type rubber fender
Type IV: Rope net type protective jacket rubber fender

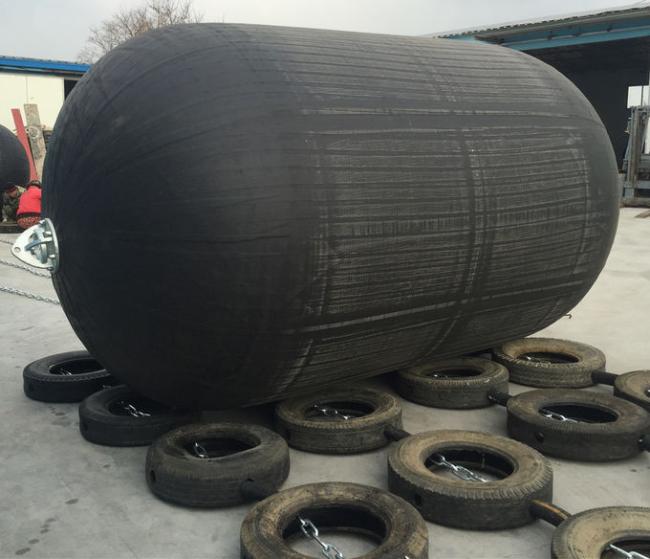

Type V: Standard type without any protective jackets
Type VI: hydro pneumatic rubber fender
Specially Designed and Strengthened Casting Flange
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
Company Introduction
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
