Dia 1.5m L20m Ship Launching Airbags Rubber Marine Salvage Airbag
Ship Launching Airbags Rubber Salvage Marine And Salvage Airbag Marine

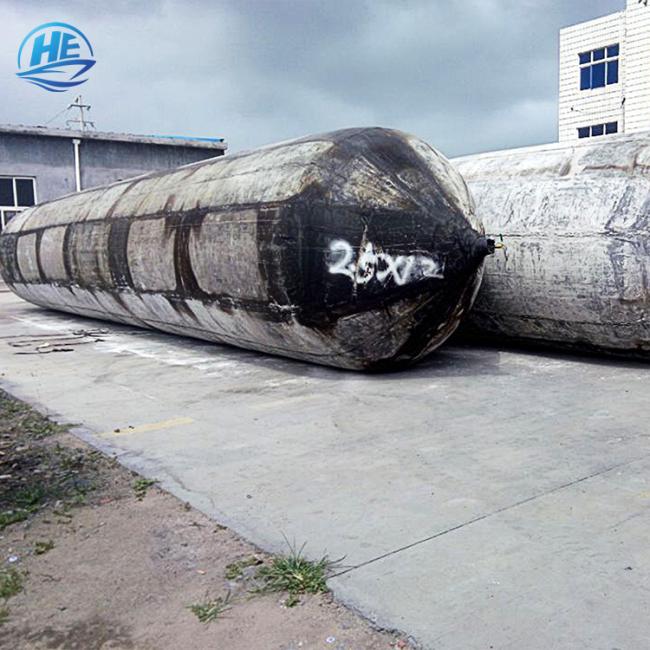

Introduction of marine rubber airbag
The Ship Launching Marine Airbag is an innovative product of China's independent intellectual property rights. The product is mainly used in the landing, lifting, handling, and installation of underwater buoyancy aids. Now, Ship Launching Marine Airbag have been widely used in the world. Airbags are relatively small due to space constraints, without large-scale machinery and equipment, which can shorten the production cycle and save a lot of costs. Through years of research and development, marine rubber airbags are now very safe, effective, and protect the environment.
Inflatable Marine Rubber Airbag Technical Parameter
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) | |||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
|
S11 |
0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
|
S12 |
0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 |
S20 |
1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
|
S21 |
1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
|
S22 |
1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 |
S30 |
1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 |
||
Marine Airbag Application

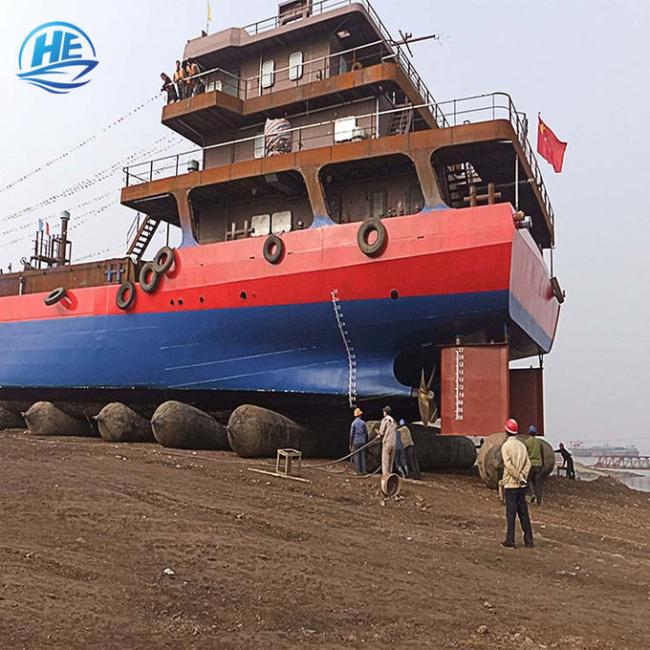

1. Ship launching and upgrading
Ship Launching Marine Airbag have a history of more than 20 years in China. Facts have proved that using marine rubber airbags to help ships launch is currently the most reliable and stable launching technology. It is suitable for large ships ranging from several tons of flat plates to 10,000 tons. At the same time, marine rubber airbags have also been approved by foreign docks, shipyards, and port/port construction companies. It is also widely spread in the United States, Europe, Southeast Asia and other markets.
2. Lift heavy objects and rescue
Ship Launching Marine Airbag are used in port construction and play the role of caisson lifting, launching, movement and transportation in the project.
3. Buoyancy assistance and salvage
Ship Launching Marine Airbag have buoyancy and load-bearing capacity, so they can also be used for sunken ship salvage and buoyancy aids.
Marine Airbag Specifications
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
| High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |
FAQ
1. "I have a boat, but I don't know how to determine the size used?
Answer: Don't worry. We have more than 20 years of experience. Please tell me the specifications of your boat and we can suggest the right size for you.
2. "I want to try to use a Chinese-made marine airbag, but I have never used it and don't know how to use it. Can you help me?"
Answer: Don't worry. We will send you the instructions for use with the goods.
3. "What is your MOQ?"
Answer: Our minimum order quantity is 1PC.
4. "What is the life of your marine rubber airbag?"
Answer: The service life is 6 to 10 years
5. "What is your warranty period?"
Answer: Our warranty period is 2 years. If it proves to be our quality problem, we will be responsible for repairing or replacing you with a new one.
6. "What kind of certificate can you provide?"
Answer: You can use CCS, SGS and other certificates.
