Industrial RO Distilled Water Purifying Treatment Systems with Active Carbon
1. Features
| Inlet Water | Treat water from River,Pond,borehole,underground,tap,well |
| Output Water | Deionized water / Distilled Water / Salt removal water / Pure water |
| Technology | Multimedia,Active carbon,Softener+ Single Ro pass or double Ro pass based + UV / ozone sterilizer |
| Multimedia filter |
quartz sand,anthracite |
| Active carbon filter |
quartz sand,active carbon |
| softener |
resin |
| Water pump | CNP in China or Groundfos from Danmark |
| Water Storages Tank | PE or SS304 / SS316L with liquid level |
| RO systems | precision filter with PP, RO membrane filters |
| Material of ro vessel | SS 304 / 316L ( FRP is also optional ) |
| Disinfection systems | Heat exchanger,chemical disinfection,UV lamp,Ozone sterilizer optional |
| RO membrane | DOW 4040 / 8040 Reverse Osmosis membranes from USA |
| Meters | Online temperature,pressure,conductivity, flow rate meters |
| Pipes | UPVC / Stainless Steel |
| Controler | Automatic PLC (manual buttons can be optional) |
| Welding | Automatic Welding |
| Ion Removal Rate | 98 - 99% |
| Recovery Rate | 70 - 75% |
| Water production Capacity | 0.25tph-30tph can be designed or more |
| Validation | Can meet GMP,FDA,cGMP from your requirements |
| Warranty | one year for the system except the spare parts |
| Installation | our engineer can go to your country to install for you and give a training to your worker |
2. Application
- Electronic industry process and cleaning water: like semiconductor, display, LEDs, Polysilicon material...etc
- Solar cell, Optical instruments,Optical lens products process or clean water
- Power industry boiler feed water: heat, thermal power boilers, medium and low pressure boiler power system
- Car Accessories production
- Food and berverage production
- Cosmetic production
- Industry manufacturing
- Fields which need deionized water/pure water/salty removal water
3. General Process recommended
River / pond / well / underground water→raw water tank →Multimedia filter→Activated Carbon filter→Water softener / Inhibitor→ Precision filter→High pressure pump→1st RO filter→delivery pump→pure water tank→UV lamp
River / pond / well / underground →raw water tank →Multimedia filter→Activated Carbon filter→Water softener / Inhibitor→ Precision filter→High pressure pump→1st RO filter→2st RO filter→ EDI module→UV lamp→Water tank
What you can do ?
- Tell us what`s your water production capacity per hour ?
- Tell us what`s your raw water , and it`s better for us if you can offer a water analysis test report.
- Tell us what`s your requirements for the pure water quality
- What`s your brands requirements for the meters , RO membranes and other more details.
- What`s the validation you need to pass ?
4. Simple Process Flow Drawing

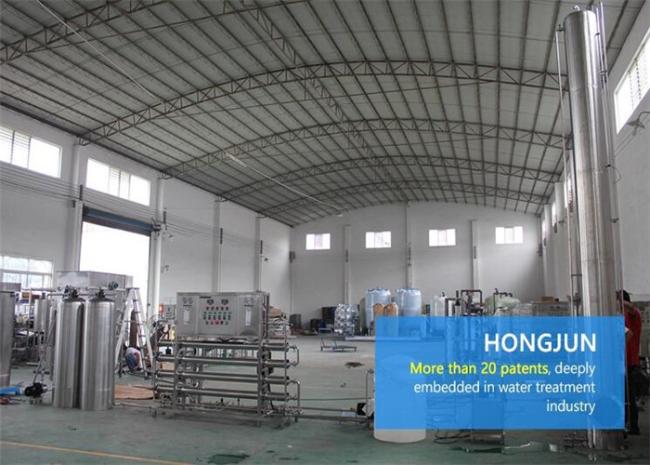

5. Product pictures
It`s a 500Lph reverse osomosis industrial water purifier treatment system
- Technical: single ro systems with EDI
- SS304
- The controler is Buttons
