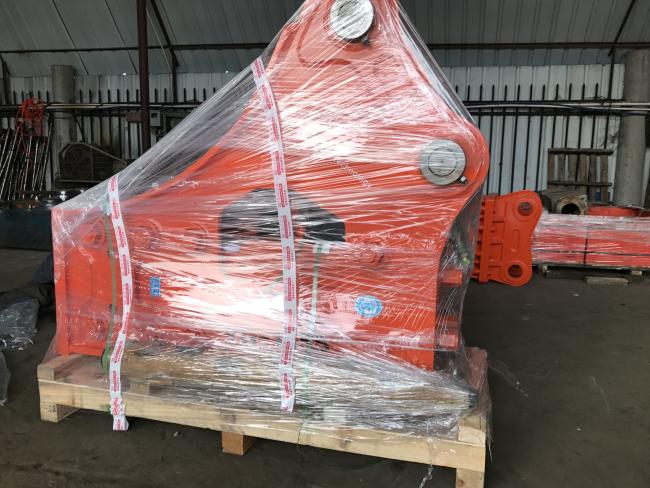

SB50 SB60 Hydraulic Hammer For Excavator Lower Oil Consumption
Hydraulic Crawler Excavator Concrete Rock Road Breaker Hammer Lower Oil Consumption
Hydraulic Rock Breaker, Rock breaker, Excavator hammer, Side type breaker, Top type breaker, Box type breaker for excavator
Our breakers are compatible with various brand of excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, vol vo, KOBELCO, KATO, KUBOTA, JCB, CASE, etc.
Our hydraulic breaker (hydraulic hammer) are applicable to a wide rang of weight class of excavators which from1.2 to100 ton
Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker.
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Excavator Hydraulic Breaker, also known as hydraulic breaker or hydraulic rock breaker (Excavator Hydraulic Breaker).
SpecifiCATion
| Description | Unit | WSTB135 Side | WSTB140Side | WSTB100 Side | WSTB155 Side |
| Applicable Carrier | lbs | 40,000~58,000 | 40,000~58,000 | 55,000~66,000 | 62,000~77,000 |
| ton | 18~26 | 18~26 | 25~30 | 28~35 | |
| Overall Weight | Lb | 3836 | 3847 | 4727 | 5320 |
| Kg | 1740 | 1745 | 2144 | 2413 | |
| Overall Length | in | 95.6 | 92 | 103.3 | 109.3 |
| mm | 2429 | 2327 | 2623 | 2776 | |
| Required Oil Flow | gal/min | 31.7~47.6 | 31.7~47.6 | 39.6~55.5 | 47.6~63.4 |
| ℓ/min | 120~180 | 120~180 | 150~210 | 180~240 | |
| Operating Pressure | psi | 2276~2560 | 2276~2987 | 2276~2560 | 2,276~2,560 |
| ㎏/㎠ | 160~180 | 160~210 | 160~180 | 160~180 | |
| Impact Rate | bpm | 350~500 | 400~550 | 300~450 | 300~450 |
| Horse Diameter | in | 1 | 1 | 1 | 1¼ |
| Tool Diameter | in | 5.5 | 5.3 | 5.9 | 6.1 |
| mm | 140 | 135 | 150 | 155 |
Features:
A. Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
B. Suitable with a wide range of excavator.
C. Versatile appliCATion including rock broken, paving road, building demolition etc.
D. Top type breaker is applied to special operation that in large elevation angle.
E. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
F one-stop service.
G easy use and easy maintenance.
