Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 workdays
Brand:
Wakestone
Product Description
Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
"broken hammer" or ''breaker".Hydraulic breaker's power source is excavators,loaders or pumping stations' pressure.It can break stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type.
| Description | Unit | WSTB10 | WSTB20 | WSTB30 | WSTB35 | WSTB40 | WSTB43 |
| Applicable Carrier | ton | 0.8~2.5 | 1.2~3.0 | 2.5~4.5 | 3.0~5.5 | 4.0~7.0 | 6~9 |
| Overall Weight | lb | 154 | 198 | 265 | 397 | 551 | 838 |
| kg | 70 | 90 | 120 | 180 | 250 | 380 | |
| Overall Length | in | 38.3 | 42.2 | 45.2 | 48.8 | 53.1 | 63.7 |
| mm | 972 | 1071 | 1147 | 1239 | 1349 | 1618 | |
| Required Oil Flow | gal/min | 4~8 | 5.3~10.6 | 6.6~13.2 | 7.9~16 | 10.6~18.5 | 13.2~23.8 |
| ℓ/min | 15~30 | 20~40 | 25~50 | 30~60 | 40~70 | 50~90 | |
| Operating Pressure | psi | 1,280~1,707 | 1,280~1,707 | 1,280~1,707 | 1,422~1,849 | 1,565~1,991 | 1,707~2,134 |
| ㎏/㎠ | 90~120 | 90~120 | 90~120 | 100~130 | 110~140 | 120~150 | |
| Impact Rate | bpm | 800~1400 | 700~1200 | 600~1100 | 500~1000 | 500~900 | 400~800 |
| Hose Diameter | in | 3/8,1/2 | 3/8,1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Tool Diameter | in | 1.6 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| mm | 40 | 45 | 53 | 60 | 68 | 75 |

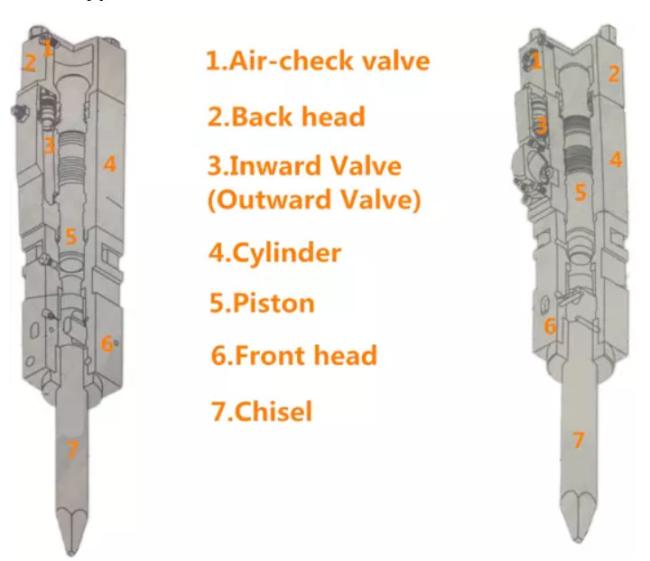

- Air-check Valve:being to the top loCATion enables operators to underwater hammering
- Back Head: steel ingot adopts the furnace refining outside and vacuum degassing, through forging(ensure the forging ratio),normalizing,Ultrasonic flaw detection to check internal organization loose and crack
- Inward Valve:Strong strick force
- Outward Valve:Normal strick force,easy to maintain
- Cylinder:Good grinding process, CNC vertical mill to ensure the process human factors
- Piston: Made by good quality material,accumulated heat treatment know-how and korean manufacturing technologe
- Front Head:Protecting the whole breaker from the chisel's shock
- Chisel:The specially heat-treated toll is directly applied to break rocks
