Electric Club Car OEM Parts ABS 48V LED Battery Indicator Charge Gauge
Price:
1 USD
MOQ:
1 PCS
Delivery Time:
10-15 WORK DAYS
Brand:
TOP GOLF
Product Description

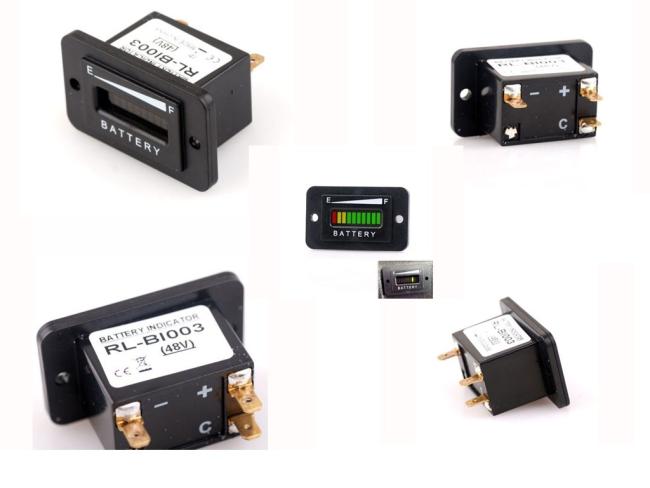

Electric Club Car OEM Parts ABS 48V LED Battery Indicator Charge Gauge
Specification:
- Operating Voltage: 48 Volt
- Range: 50.21 Volt Full - 41.52 Volt Empty
- Material: ABS
- Waterproof: IP65
- Temperature Range: -40F to 185F
- Connection: Pin+ Battery+ Pin- Battery- C-single output for external use
- Range indication: Green: 41~100%, Yellow: 21~40%, Red: 20% less
- Outside Measurements: Width 2 1/16", Height 1 1/4"
- Dimensions: Cut-off: 1.5"x1", distance between holes: 1.75", depth: 1.5"
- Case Style: Front Panel Mount
Product Description
- 48V LED Battery Indicator Tester for Lead-acid Battery
- High reliability, low cost and compact size. Suitable for lead-Acid battery.
- Note: "C" pin of the meter must be connected with the "+" pole of battery. When it connects with the battery, the meter will display full. After 155 seconds, it will display real battery level segment.
- Application: Motorcycle Golf Carts Car Jet Ski and so on
- Capacity: 1 Red 2 Yellow 7 Green color LED for indicator
Technical parameters:
| Display: | 10-bar LED indicates the battery state of discharge. |
| Terminals: | Max. 3; 3/16"-spades |
| Mounting: | U-shape bracket |
| Panel Cutout (mm): | 37x25mm |
| Operating Temperature: | -40 °C to +85 °C |
| Storage Temperature: | -50 °C to +90 °C |
| Humidity: Operating | 95% RH (Non Condensing) at 38 °C |
| Voltage: | 12V&24V,24V,36V,48V,72V |
| Battery indicating range can be customized (eg 2.04Vpc at full, 1.73Vpc at empty).EEPROM memory | |
