IEC61869-1&2 IEC 60044 MV Current Transformer 12 Kv Indoor 50 / 60Hz
LZZBJ6-12E 12kv Indoor Single-Phase Epoxy Resin Type MV Current Transformer
This series of current transformer use fully enclosed cast insulation structure, the primary winding, the s econdary winding and the annular core are encapsulated in the epoxy resin casting body, the product is a pillar structure; they can be installed in all directions due to light weight; they have the concave groove design to improve and enhance resistance performance to contamination and moisture. It is suitable for measurement of current and energy and used as relay protection indoor for the electricity with rated frequency of 50 / 60Hz and below 12kV AC.

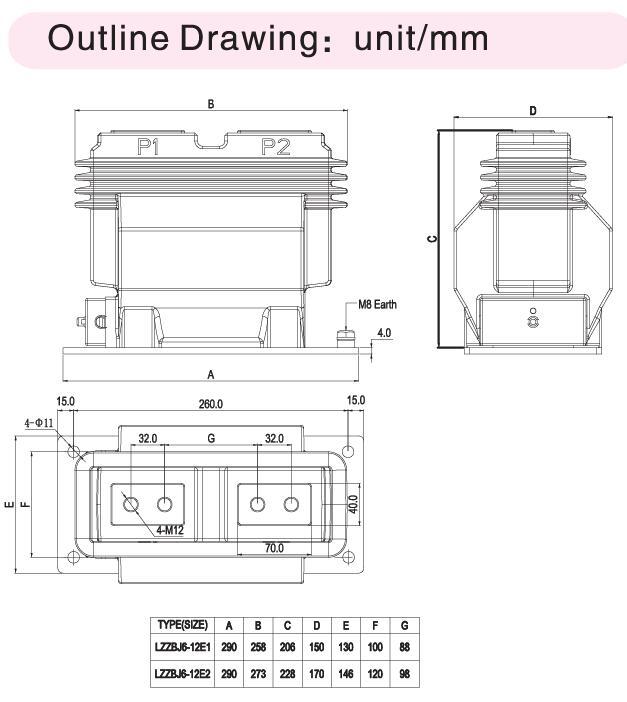

Specification:
| Item | Specification | Unit | Data | Remarks |
| 1 | Um | kV | 12 | |
| 2 | BIL | kV | 12/28/75 | |
| 3 | Rated Primary Current | A | 10 - 1000 | |
| 4 | Rated Second Current | A | 1 or 5 |
|
Rated Current Ratio (A) |
Class Combination | Rated Output(VA) | |||
| Measurement | Protection | Protection | |||
| 0.2 | 0.5 | 5P10 | 5P15 | ||
| 10~100/5 |
0.2 0.5 0.2/0.5 0.5/5P10 0.5/5P15 |
10 15 |
10 15 |
10 15 |
5 10 |
| 150/5 | |||||
| 200/5 | |||||
| 400/5 | |||||
| 500/5 | |||||
| 600/5 | |||||
| 800/5 | |||||
| 1000/5 | |||||
