Professional Magnetic Latching Relay 60A Single Coil For Energy Meter
Latching Relay 60A Part No. CY-JMD-09V03 for energy meter Professional Manufacturer
Latching Relay 60A Part No. CY-JMD-09V03

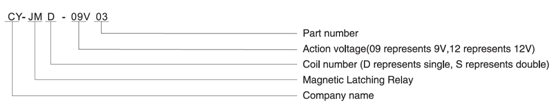

1. Part Number Description
2. Character
Meet to IEC62055-31-2005—UC2
According to RoHS requirements
Large switching power with mini body
Big strengthof magnetic latching power,anti-shock of vibration
Pulse drive,economy of power consumption and no heat rising
Permanent magnetic strength to keep stability,and save power consumption
Small contact resistance ,and little self-consumption with reliable working
3. Application
Electronic energy meter
Automatic meter reading system
Lamp controller
Complex switch
Home appliance and automatic control equipment
4.Coil Specification
| Rated voltage | Action voltage (VDC) | Max coil voltage(V) | Coil resistance x(1±10%)Ω | Rated power | |
| Single coil | Double coil | ||||
| 6 | 4.8 | 12 | 36 | 18+18 |
Single coil 1W
Double coil 2W |
| 9 | 7.2 | 18 | 81 | 40.5+40.5 | |
| 12 | 9.6 | 24 | 144 | 72+72 | |
| 24 | 19.2 | 48 | 576 | 288+288 | |
| 48 | 38.4 | 96 | 2304 | 1152+1152 | |
5. Technical Specification
| Contact type | 1B(1A) | Insulation resistance | ≥1000MΩ(500VDC) | |
| Contact material | AgSoO2 | Dielectric strength | Coil--contact | ≥4000VAC 1min |
| Contact--contact | ≥1500VAC 1min | |||
| Contact load (resistance) | 60A 250VAC | Action time | close | ≤20mS |
| open | ≤20mS | |||
| Contact resistance (mΩ) | ≤2mΩ | Action impulse duration | 50mS-240mS | |
| Max switching voltage | 250VAC | Life (time) | Electrical life(ops) | 1x 104 (circle) |
| Mechanical life (ops) | 1x 106 (circle) | |||
| Max switching current | 60A | Max action frequency | 1200 ops/h | |
| Max switching power | 15KVA | Vibration tolerance | 98m/s2 | |
| Short time impact current |
2500A 10ms no sinter 4500A 10ms no explosion |
Shock tolerance | 10-50Hz 1.0mm | |
| Ambient temperature |
-40℃ to +70℃
|
Relative humidity | 90% RH 40℃ | |
6. Dimension
