GB/T 4857 Packaging Inclined Carton / Paper Impact Testing Equipment
Price:
Negotiable
MOQ:
1 set
Delivery Time:
10-15 days
Brand:
ZL
Product Description
GB/T 4857 Packaging Inclined Carton / Paper Impact Testing Equipment
Product Overview
Packaging Inclined Impact Testing Equipment simulates product package impact resistance capability during various scenarios including product carrying, shelf pileup, motor slider operation, fork loading and unloading, and product shipping. This equipment is widely used by scientific research institutions, universities, package testing centers, package manufacturers, and forwarder companies for inclined plane impact testing.
Compliance Standards
GB/T 4857.11-2005, GB/T 1019.2008, ISTA 1A
Key Features
- Electric positioning pulley system for flexible and easy positioning with adjustable speed control
- Low block height design for convenient installation and testing
- Adjustable horizontal pulley surface for easy test piece installation
- Remote operation capability ensuring testing personnel safety
- Simple ground installation without additional operations
- Adjustable impact plate with fixed impact block and height adjustment
- Touch screen control interface
- Hardened baffle impact surface with damper structure to prevent double impact
Technical Parameters
| Maximum Load | 200Kg (or customized) |
| Specimen Maximum Dimension | L1400 × W1400 × H2000mm |
| Angle Between Impact Plane and Orbit Plane | 90° ± 1° |
| Maximum Slide Space | 2000mm (or customized) |
| Impact Speed Range | 1.305 ~ 2.68m/s |
| Impact Plate Size | W2000 × H2200mm |
| Impact Speed Resolution | ≤ ±5% |
| Inclined Angle | 0~25° cylinder adjusting, deviation ±1° |
| Controller | LCD panel |
| Power Supply | Three phase 380V, 50/60Hz or specified by user |
| Working Conditions | Temperature: 0~45℃, humidity ≤85% (Non-condensate) |
| Machine Dimension | L4600 × W2200 × H2600mm |

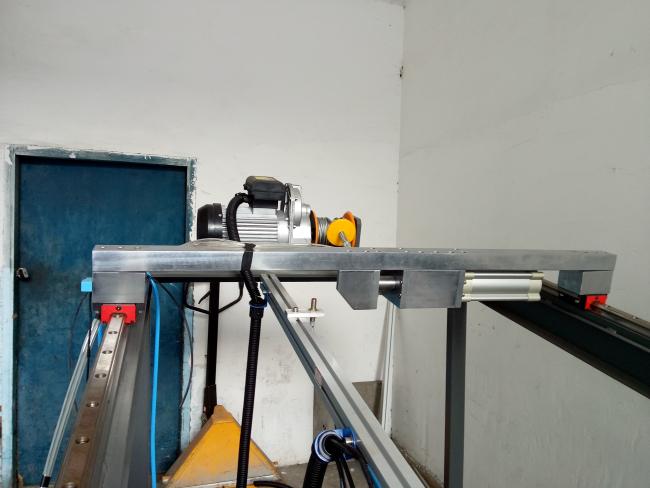

Product Images
