ASTM G65 130N Electronic Dry Sand Rubber Abrasion Test Rubber Wheel Wear Tester

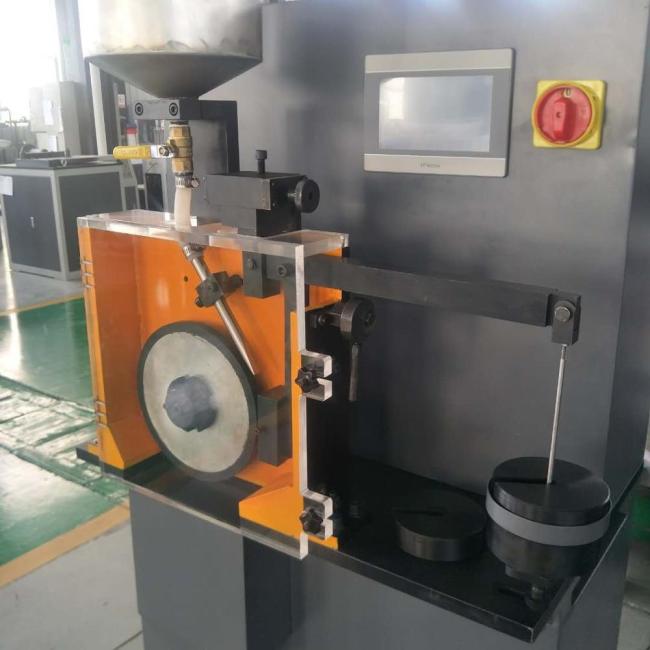

The ZL-130 Dry Sand Rubber Wheel Wear Tester is a precision instrument designed for dry sand semi-free abrasive wear testing. This machine complies with ASTM B611, G65, and JBT_7705-1995 standards, providing reliable performance for material wear resistance evaluation.
- Compliant with ASTM B611, G65, and JBT_7705-1995 standards
- Dry sand semi-free abrasive wear testing capability
- Fixture adjustment device for extended rubber wheel life
- Automatic shutdown control via timing or constant revolution counter
- Variable parameters to simulate diverse working conditions
The testing machine employs a clockwise rotating rubber wheel to drive abrasives such as quartz sand, ore, or other granular materials against test samples. This process evaluates the wear resistance of various metal and non-metal materials. The adjustable parameters, including the positive pressure exerted by the rubber wheel on the sample, enable effective simulation of multiple working conditions.
Ideal for wear-resistant material screening in industries including mining machinery, construction machinery, transportation machinery, and agricultural machinery. The instrument also serves research departments in studying abrasive wear mechanisms.
| Parameter | Specification |
|---|---|
| Maximum Load | 130 N |
| Rotation Direction | Clockwise |
| Rubber Wheel Speed | 40-350 rpm (frequency conversion speed regulation) |
| Rubber Wheel Diameter | 229 mm |
| Rubber Wheel Hardness | 60±2 (Shore hardness) |
| Sample Size | 75×25×(3.2-12.7) mm (length×width×thickness) |
| Overall Dimensions | 710×740×1600 mm (length×width×height) |
