UV Curing Machine Used To UV Ink , UV Adhesives , Plastic , Glass , Hardware Etc
Price:
Negotiable
MOQ:
1 set
Delivery Time:
4-7 work days
Brand:
ZL
Product Description
UV Curing Machine for Industrial Applications
Professional flat UV curing machine designed for efficient drying and solidification processes on flat surfaces. Ideal for UV ink, UV adhesives, UV paint curing applications on plastic, glass, hardware, and various industrial materials.
Key Features
- High-efficiency UV light system for rapid curing with adjustable intensity parameters
- LED display for real-time conveyor speed monitoring and operational convenience
- Durable construction with extra-thick stainless steel machine body
- Imported UV lamp and transformers with specialized ventilation design
- Versatile compatibility with different UV curing processes
- Cost-effective solution designed to improve customer output and reduce operational costs
Machine Dimensions
| Machine Length | 2000mm |
| UV Working Area | 1200mm |
| Feed Operation Area | 400mm |
| Discharge Area | 400mm |
| Entrance Height | 100-150mm (adjustable) |
| Entrance Width | 500mm |
| Conveyor Belt to Floor Distance | 750±50mm |
Electrical Specifications
| General Power | 7.0 kW 5.0A |
| Belt Speed Range | 0-10m/min |
| Motor Power | 800W |
| Speed Controller | 500W |
| Exhaust Fan | CY-125 |
| Ampere Meter | 50A |
| Voltmeter | 220V |
| Machine Voltage | 220V ±5% 50Hz |
Curing Light Specifications
| Light Source | Ultraviolet (UV) radiation dry solid light source |
| UV Lamp Light Length | 560mm (total length 800mm) |
| Light Power | 2KW - 3KW (adjustable) |
| UV Source Wavelength | 350μm |
| UV Lamp Quantity | 1 piece, 3KW |
Protective Devices
- Over voltage and over current protection
- Warning alarm system
- Overload protection
Machine Configuration
| No | Spare Parts | Brand | Origin | Qty | Specifications |
|---|---|---|---|---|---|
| 1 | Outer Material | Cold plate baked | China | - | 1.2MM thickness |
| 3 | Inner Material | Zinc-coated steel sheet | China | - | 1.0mm thickness |

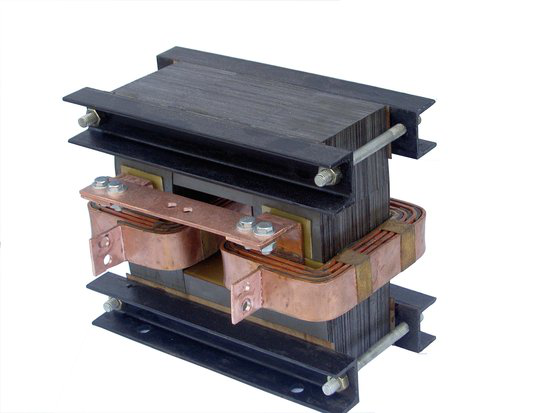

| 4 | Boosting Transformer (220V) | Saginomiya | Japan | 1 Set |  |
| 5 | Reflector | Tai Shun | Taiwan | 1 set | - |

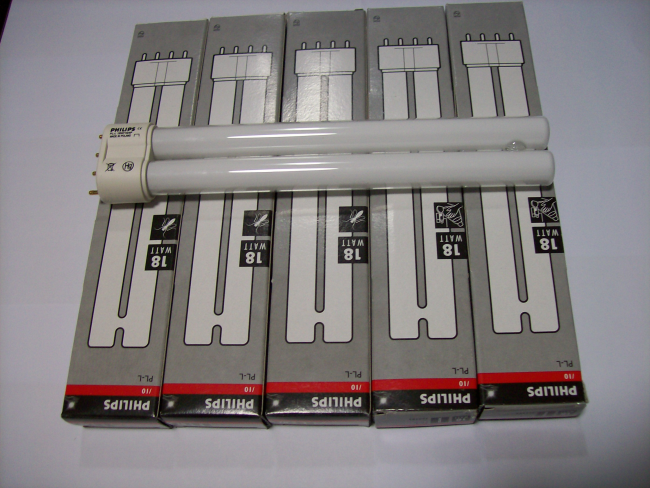

| 6 | Lamp | - | USA | 1PC |  |
| 7 | Exhaust Fan | Manda | China | 1 set |  |
| 8 | Motor | Jiaxian | Taiwan | 1 Set |  |
| 9 | Mesh | Meiao | China | - | - |
