304 Stainless Steel Food Weighter And Metal Detector Band Induction
Price:
Negotiable
MOQ:
1 set
Delivery Time:
4-7 work days
Brand:
ZL
Product Description
304 Stainless Steel Food Weighter And Metal Detector Band Induction
304 Stainless Steel Food Weighter and Metal Detector, Band Induction
Application
This system is designed to check the weight of various products. Bags that are over or under weight will be automatically rejected, while qualified bags proceed to the next equipment in the production line.
Weight Checker Specifications
| Testing Product | Food |
|---|---|
| Test Product Weight | 400g ~ 1000g (customizable) |
| Detection Speed | 40 ~ 60 pieces/min (customizable) |
| Detection Accuracy | ± 2g |
| Weight Checker Table Size | 650 × 450mm (customizable) |
| Rejection Device | Putter or fall rejection (optional) |
| Pressure Requirements | 0.6 mpa |
| Delivery Direction | From left to right for user interface |
| Conveyor Height from Ground | 750 ± 50mm (customizable) |
Metal Detector Specifications
| Detection Width | 40cm (customizable) |
|---|---|
| Detection Height | 13cm (customizable) |
| Machine Length | 120cm (customizable) |
| Ground to Conveyor Surface Height | 750 ± 50mm (customizable) |
| Detection Method | Band Induction |
| Alarm Mode | Alarm Stop |
| Elimination Method | Lever Type Rejection |
| Delivery Speed | 28m/min (customizable) |
| Shell Material | 304 Stainless Steel |
| Power | AC220V; 100W |
| Automatic Setting | One-touch Operation |
| Detection Sensitivity | Fe ≥ φ1.2mm, SUS ≥ φ1.8mm |
Metal Detector Features
- Excellent detection results for food products
- Fe and SUS can be individually adjusted
- Detection unit uses imported resin pouring
- Includes portable switch
- Both sides of the board can adjust to accommodate various product sizes

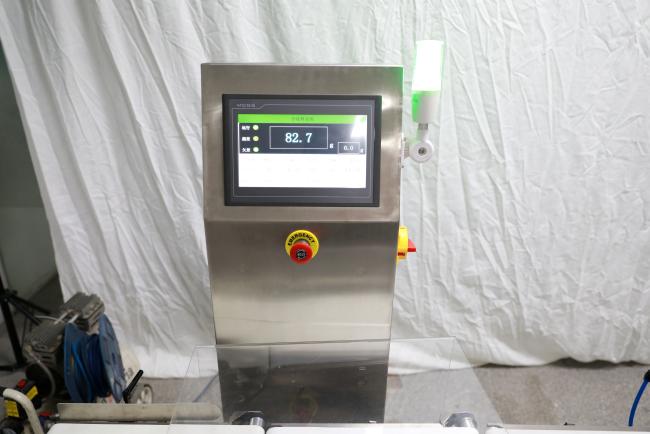

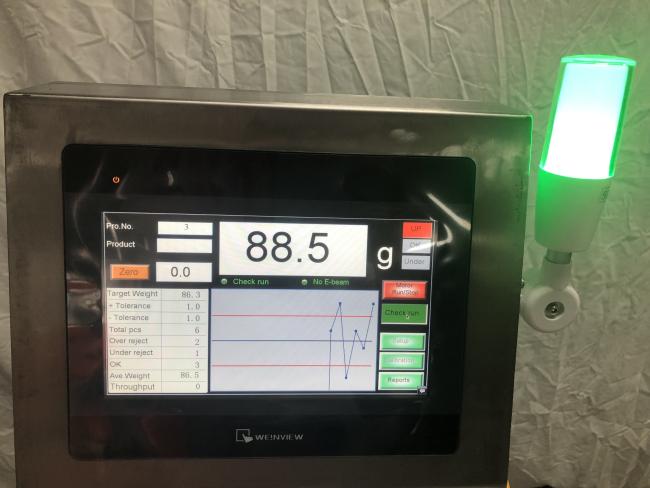

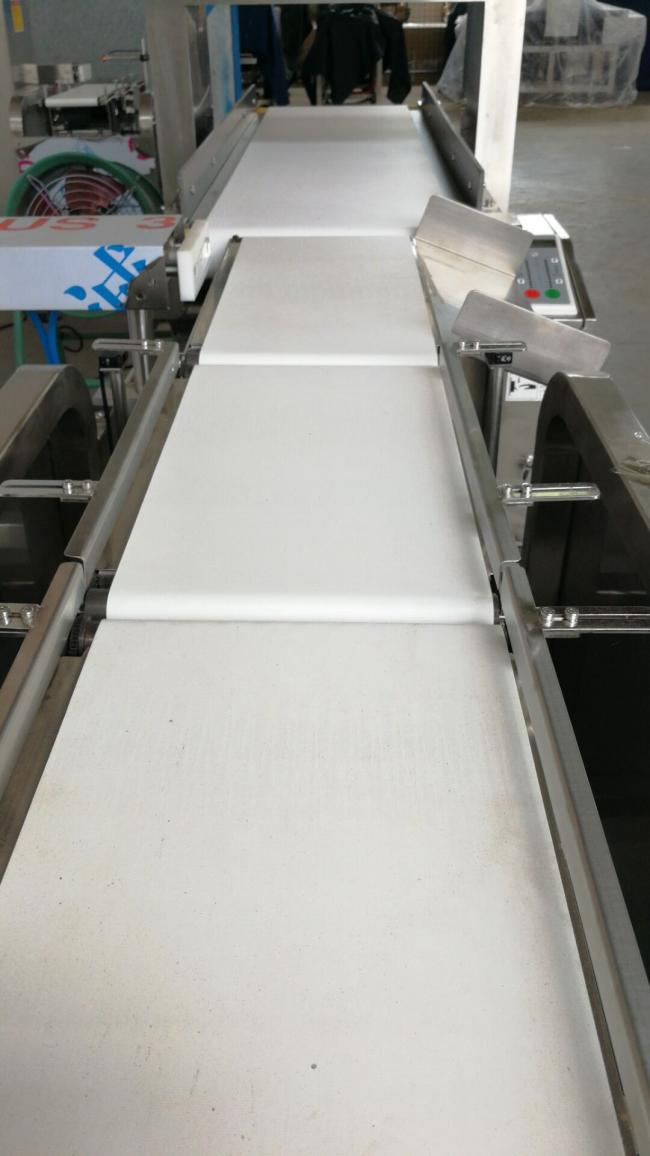

Product Images
