10 Ton Single - Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5-8 work days
Brand:
ZL
Product Description

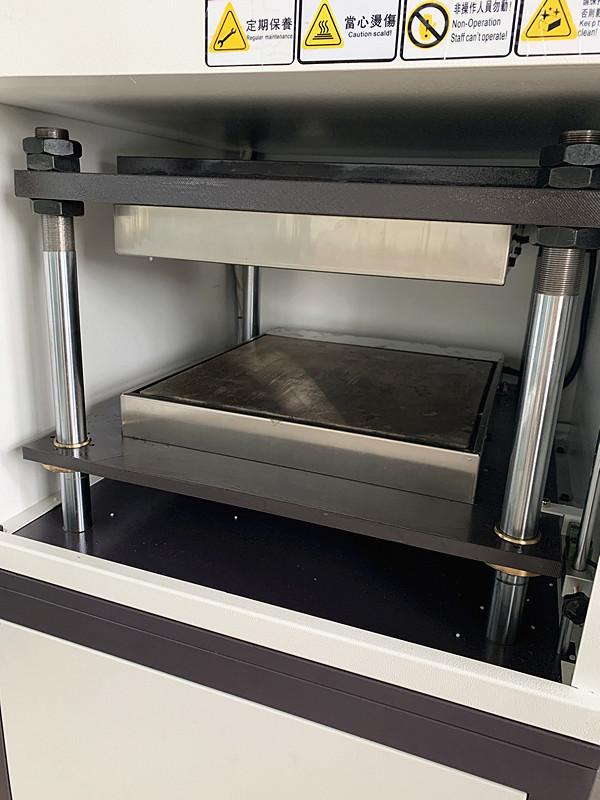

10 Ton Single-Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine
Product Introduction
This laboratory hydraulic hot press machine is specifically designed for processing rubber and plastic materials, pigments, oils, and chemical materials. Raw materials are placed in the mold and clamped between electric heating plates, where appropriate pressure and temperature are applied to shape the materials for testing purposes.
Main Features
- High-performance hydraulic system with automatic pressure compensation function
- Programmable first and second pressurization timing and pressure settings
- High-precision, high-wear-resistant guide columns with strong load capacity and stable lifting
- Imported technology for electric heating plate materials - high temperature resistance, corrosion resistance, fast heat transfer, and no deformation
- Intelligent oil circuit design with automatic shutdown maintenance pressure or delayed shutdown functions
- Automatic pressurization or pressure relief when preset time is reached
Technical Parameters
| Capacity | 10~50 ton (Optional) |
| Temperature Range | Room temperature to 300℃ |
| Temperature Controller | LED Indicator, press key set input, value indicate output |
| Timer | LED display, time range 0.1S to 99min to 9.9hr |
| Heating Type | Electrical Heating module |
| Hot Pressure Plate | 300×300mm (can be customized) |
| Cold Pressure Plate | 300×300mm (can be customized) |
| Distance of Pressure Plate | 100mm |
| Pressure Material | SKD chromium-molybdenum alloy |
| Pressure Surface | Mirror chrome plated |
| Cooling Temperature Scope | Room temperature to +5℃ |
| Cooling Type | Tap water cooling/compressor cooling water (optional) |
| Oil Pressure System | Proportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver high performance with high accuracy non-resistance piston oil cylinder for constant speed rate control mode, can pre-select one or two times pressure and time |
| Oil Cylinder Stroke | Max 200mm |
| Oil Cylinder Speed | 11mm/s |
| Pressure Gauge | 0~350kg/sq.cm |
| Power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power Supply | 3∮, AC380V, 20A |
| Weight | About 658kg |
