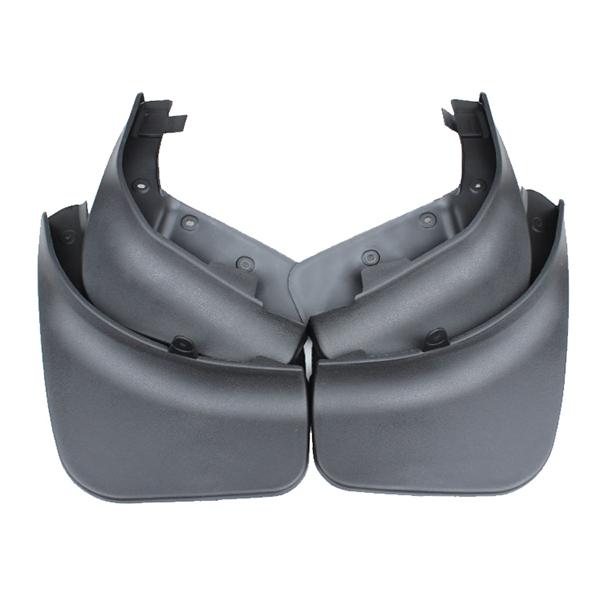

Overmolding Plastic Moulding Parts OEM With Single Cavity Mould
Overmolding plastic injection molds/Plastic OEM Injection MoldingParts
Mould Information:
| Processing capacity: | Mold design, mold making and plastic injection molding |
| Material of Mould | 45#, P20, 718, 718H, 2738, 2316, S136 and more kinds of material you can choose, |
| Mould frame: | 45Pre-hardened>30 HRC |
| Cooling System: | Recirculating |
| Medium-term treatment: | Tone quality, improve the hardness |
| Post-processing: | Nitride(Nitriding temperature is low, deformation is small, it is no longer the need for quenching high surface hardness(over HV850) and wear |
| Die life: | P20 Normal use no less than 30 million times |
| Molding process technology | Review plan--- Stock preparation--- Processing-- Rough mold base --- Punch machining--- EDM die sinking--- Die Machining---Inspection--- Assembly--- Flight mode--- Tryout--- Customer confirm the sample--- producer of delivery to the customer |
| Transportation: | In the mold must be installed before shipment clamping piece, packing strong, rust-proof, logistics and transport |
| After-sales service: | Die 1-year repair, Free maintenance during warranty |
| Note | Mold in the production process, we provide a schedule each week and take pictures |
| Runner system | 1 point gate hot runner |
| Ejection system | Inclined ejecting block |
| Molds running | Full automaticity |
| Molds features | Complex mold structure, etc |
| Injection cycle time: | 12s, 15s, 18s, 20s, 22s, 25s(high speed injection machine) |
| Cavity | Single/multifunctional |
| Runner | Hot/Cold |
| Design software | UG,PROE,CAD,CAXA,ETC |
| Mould life | 30000-500000 Shots |
| Delivery time | 15-60days |
| Item Name | Expert of Precision Injection Plastic Tooling Design and Mold Maker |
| Service | 1. CNC Plastic/Metal Prototypes |
| 2. Vacuum casting/vacuum forming(Silicon Mould) | |
| 3. Low Volume Production | |
| 4. Rapid Hardware/Sheet Metal Prototypes | |
| 5. CNC Aluminum/Brass/Copper/Bronze CNC machining/machined parts | |
| 6. Automotive and medical equipment Prototypes | |
| 7. SLA/SLS prototype | |
| 8. Metal Stamping&NCT Stamping | |
| 9. 3D Printing | |
| 10. Die-casting, hardware machining | |
| 11. Electronic Manufacturing Service | |
| 12. Injection mould&Plastic Injection | |
| 13. Lathing parts | |
| 14. Design service (OEM service) | |
| Certification passed | Bureau Veritas, ROHS, ISO |
Advantages of injection plastic parts
- Competitive price
- Continuance service and support
- Diversified rich experienced skilled workers
- Custom R&D program coordination
- Application expertise
- Quality, reliability and long product life
- Mature, perfect and excellence, but simple design
FAQ
Q: Can you accept OEM service?
A: Yes, we are warmly welcome OEM service. Just send your 2D&3D drawing or golden sample with quality demand (such as material, surface treatment, color, and package) to us.
Q: What is the drawing format you needed?
A: Prefer to STP, DXF for 2D&3D drawing, and PDF, AI, CDR, JPG for artwork design.
Q: What is your MOQ?
A: Usually our MOQ is 1000pcs, but we accept lower volume for your trial order.
Q: Can I get samples?
A: Sure, we usually provide a free store sample to you for quality checking. 1~2days can delivery. But there is a little sample fee that would be charged if you request your OEM samples, and it is refundable when your order is up to a certain quantity. 3~5days can delivery.
Q: How much is the freight charge?
A: To save money and time, we suggest to deliver by express for small quantity, and deliver by sea for large quantity. At the same time, we can get a big discount from a shipping company.
Q: Do you have a quality guarantee?
A: Yes. We have a QC department and 100% inspection before shipping, to ensure the CNC parts is NO visual defects, a traceable quality record for the product shipped from us, and if any fault is found, we commit to send a replacement at our cost, or any other more suitable solution depends on discussion with our customer. At the same time,
